Amplifier Research FL7218/KIT-M1 for Rent, Electric Field Probe Kit, 2 MHz - 18 GHz, 2 - 1000 V/m

Product Highlights

• Model FL7218 Probe with carrying case and Calibration Report
• Model FI7000 Probe Interface
• Model FC7010 Fiber Optic Cable Set for FL7000 Series probes, 10 meters
• Model MA7000 Fiber Optic Mating Adapter Set
• Rack Mount

FL7218 Electric Field Probe

• Amplitude Accuracy (Field Aligned with Sensor Axes): Without correction factors applied, ± 1.0 dB @ 10 MHz; with correction factors applied, typical expanded measurement uncertainty (95% confidence interval), 0.8 dB, 2 MHz - 1 GHz; 1.4 dB, 1 GHz - 18 GHz
• Response Time/Sampling Rate (Through FI7000): 20 msec/up to 50 samples per second at FI7000, USB and GPIB only
• Isotropic Deviation (Measured at the Ortho Angle): ± 0.5 dB @ 10 MHz; ± 1.5 dB, 2 MHz - 18 GHz (typical)
• Operating Range: 2 - 1000 V/m
• Linearity, 2 to 1000 V/m: ± 0.5 dB over operating temperature range
• Damage Level: 1200 V/m CW
• Ranges: Single continuous range
• Data Returned from Probe: X, Y, Z axes and composite
• Power Requirements: Laser powered from FI7000 interface
• Fiber Optic Connectors: Two E2000 compact duplex connectors at 1 meter, includes fiber optic verification loop
• Operating Temperature Range: 10° C to 40° C (50° F to 104° F) @ 5% to 95% RH non-condensing
• Dimensions: Approx. 278 x 65 x 65 mm (10.95 x 2.6 x 2.6 in)
• Weight: Approx. 150 g (5.3 oz)

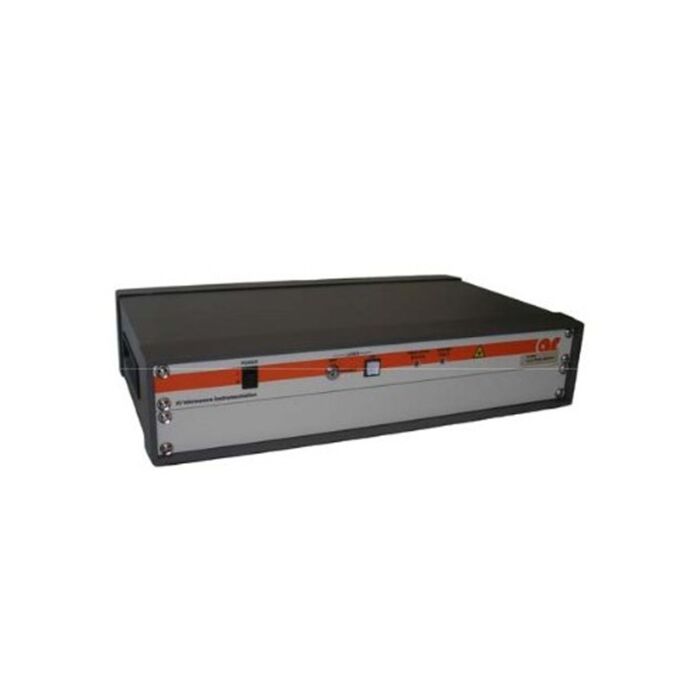

FI7000 Probe Interface

• Interfaces: IEEE-488 (GPIB); USB 2.0, Test and Measurement Class; Laser Fiber Optic Serial reserved for connection to one FL/PL 7000 series probe
• Fiber Optic Connectors: (2) E2000 compact duplex female for probe communication and safety fiber loop
• Laser: 500 mW, 830 nm
• Laser Shutdown Time: <1 msec after fiber disconnect; <250 msec after loss of communication
• Power Requirements: Input voltage, 90 - 260 VAC, 50 - 60 HZ; input current, 0.2 - 0.6 A; input type, IEC inlet with filter
• Enclosure: Desktop Case, 2U high; 1U blank panel installed
• Operating Temperature: 10° C to 40° C (50° F to 104° F) @ 5% to 95% RH non-condensing
• Dimensions: 48.3 x 4.5 x 25.4 cm (19.0 x 1.75 x 10.0 in) without enclosure;  49.8 x 12.7 x 30.5 cm (19.6 x 5.0 x 12.0 in) with enclosure
• Weight: 2.5 kg (6.25 lb) with enclosure; 7.25 kg (16 lb) without enclosure
