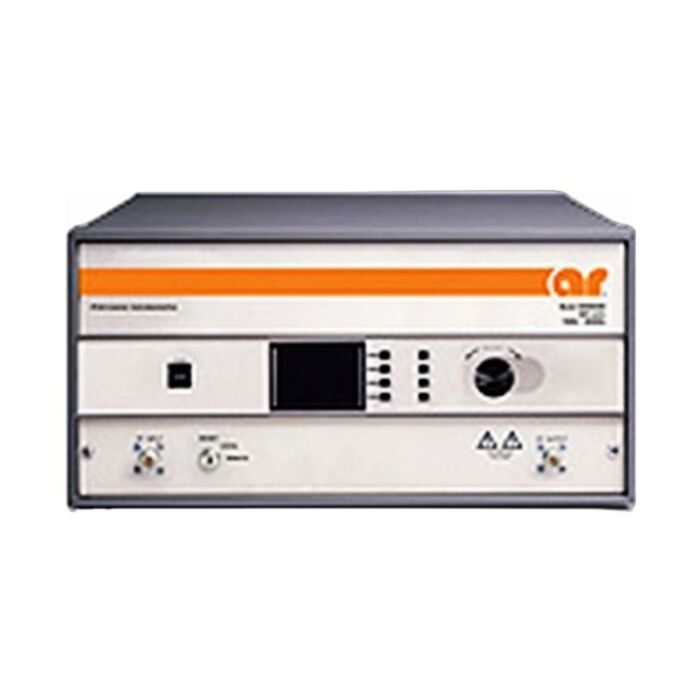

Amplifier Research 175A400 for Rent, RF Amplifier, 10k Hz to 400 MHz, 175W

Product Highlights

The Amplifier Research 175A400, when used with a sweep generator, will provide a minimum of 175 watts of RF power over a frequency range of 10kHz to 400MHz. The 175A400 RF amplifier is protected from RF input overdrive by an RF input leveling circuit and from over-temperature by removing the DC voltage to them if an over-temperature condition occurs. This model is available in a stylish, contemporary cabinet for benchtop use or with cabinet removed for rack mounting.

The Amplifier Research 175A400 is equipped with a Digital Control Panel (DCP) which provides both local and remote control of the amplifier. All amplifier control functions and status indications are available remotely through the Remotes Package, which includes GPIB/IEEE-488 format, RS-232 hardwire and fiber optic, USB, and Ethernet. Also included with the Remotes Package is a safety interlock circuit for use with external safety switch interlocks. This circuit prevents the amplifier from going into operate mode unless the external connection is made. The Amplifier Research 175A400 RF amplifier will faithfully reproduce AM, FM, or Pulse modulation appearing on input signal.
