Amplifier Research 200S1G6 for Rent, Broadband Amplifier, 0.7 GHz to 6 GHz, 200W

Product Highlights

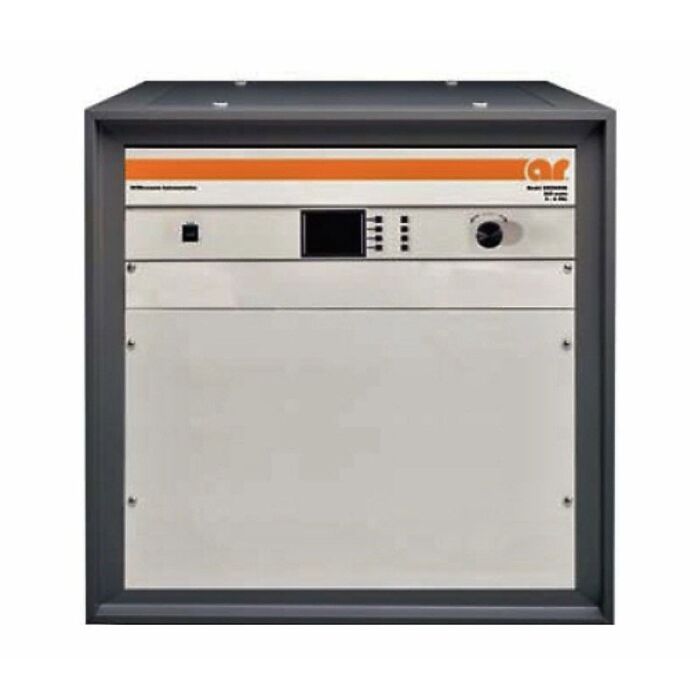

The Amplifier Research 200S1G6 is a solid state, Class A design, self-contained, air-cooled, broadband amplifier designed for applications where instantaneous bandwidth, high gain and linearity are required. Housed in a stylish contemporary cabinet, the unit is designed for benchtop use, but can be removed from the cabinet for immediate equipment rack mounting.

• When used with a sweep generator, provides a minimum of 200 watts of RF power
• Front panel gain control allows convenience of setting desired output level
• Protected from RF input overdrive by an RF input leveling circuit which controls the RF input level to the RF amplifier first stage when the RF input level is increased above 0 dBm
• Stages are protected from over-temperature by removing the DC voltage to them if an over-temperature condition occurs due to cooling blockage or fan failure
• Digital display on front panel indicates operate status and fault conditions if an over-temperature or power supply fault has occurred
• Unit can be returned to operate when the condition has been cleared
• All control functions and status indications are available remotely in GPIB/IEEE-488 format, RS-232 hardwire and fiber optic, USB and Ethernet
• Bus interface connector is located on back panel
• Local/Remote switch on front panel assures postive control of local or remote operation
• Applications:
• Low level of spurious signals and linearity make amplifier ideal for use as a driver amplifier in testing wireless and communication components and subsystems
• Can be used as a test instrument covering multiple frequency bands
• Suitable for a variety of communication technologies including CDMA, W-CDMA, TDMA and GSM
• Suitable for EMC Test application where undistorted modulation envelopes are desired

Specifications

• Rated power output: 200 watts minimum (0.7-6.0 GHz)
• Input for rated output: 1.0 milliwatt maximum
• Power output @ 3dB compression:
• Nominal: 220 watts
• Minimum: 180 watts
• Power output @ 1dB compression:
• Nominal: 180 watts
• Minimum: 160 watts
• Small signal gain flatness:
• Typical:  ±1.5 dB
• Maximum:  ±2.5 dB
• Frequency response: 0.7 - 6 GHz instantaneously
• Gain (at maximum setting): 54 dB minimum
• Gain adustment: (Continuous Range)
• 10 dB minimum (4096 steps remote)
• Input impedance: 50 ohms, VSWR 2.0:1 maximum
• Output impedance: 50 ohms, nominal
• Mismatch tolerance:
• 100% of rated power without foldback
• Will operate without damage or oscillation with any magnitude and phase of source and load impedance
• Modulation capability: Will faithfully reproduce AM, FM, or pulse modulation appearing on the input signal
• Third order intercept: 60 db typical
• Noise figure:  10 dB typical
• Harmonic distortion:
• Minus 20 dBc maximum at 180 watts (1.0-6.0 GHz)
• Minus 15 dBc typical at 180 watts (0.7-1.0 GHz)
• Spurious: Minus 73 dbc typical
• Phase linearity: ± 1.0 deg/100 MHz typical
• Primary power: (Selected Automatically)
• 90-132, 180-264 VAC
• 50/60 Hz, single phase
• 1900 watts maximum
• Connectors:
• RF:  Type N female
• Remote Interfaces:
• IEEE-488: 24 pin
• RS-232: 9 pin Subminiature D
• RS-232 (fiber optic):  Type ST
• USB 2.0: Type B
• Ethernet: RJ-45
• Safety interlock: 15 pin Subminiature D
• Cooling: Forced air (self contained fans)
