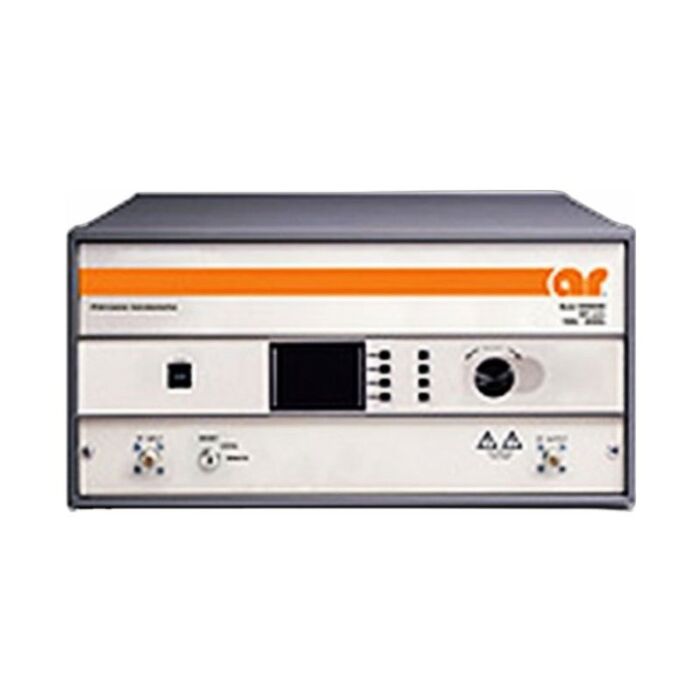

Amplifier Research 800A3A for Rent, RF Amplifier, 10 kHz to 3 MHz, 800W

Product Highlights

The Amplifier Research 800A3A is a self-contained, air-cooled, broadband, solid-state amplifier designed for applications where instantaneous bandwidth and high gain are required. The Model 800A3A, when used with an RF sweep generator, will provide a minimum of 800 watts of swept power. A digital control panel provides both local and remote control of the amplifier. The display provides operational presentation of forward power and reflected power, plus control status and reports of internal amplifier status. Special features include a gain control, RF output level protection, and a transformer with selectable taps for matching to different load impedances.

All amplifier control functions and status indications are available remotely in IEEE-488, RS-232 and USB. The buss interface connectors are located on the back panel and positive control of local or remote operation is assured by a keylock on the front panel of the amplifier. The 800A3A amplifier is intended for applications where the load impedance is not necessarily 50 ohms. The selectable output impedance provides the capability to drive loads that would otherwise cause a high SWR and limit the delivered power. The impedance matching transformer uses high-voltage/high-current vacuum relays so the user can "hot switch" between impedances without damage.
