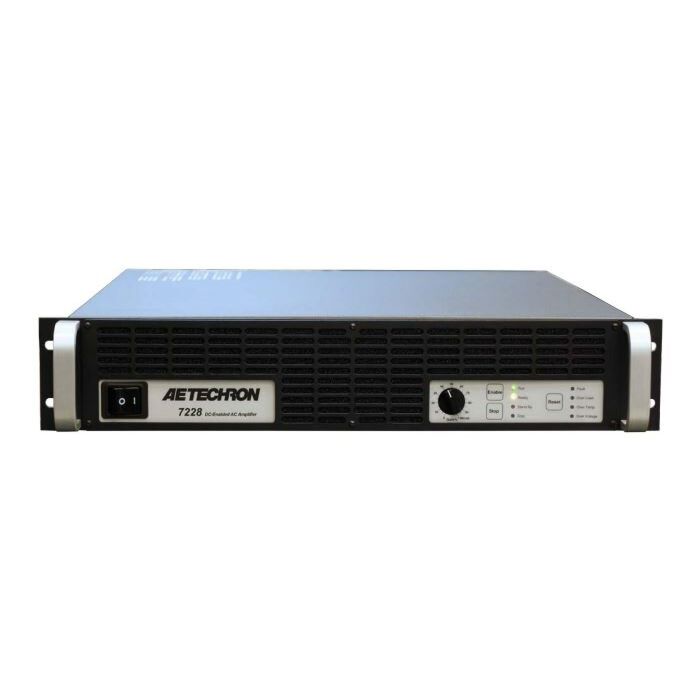

AE Techron 7228 for Rent, Linear Power Amplifier, DC Enabled, DC - 1MHz, 1000W RMS

Product Highlights

AE Techron's 7228 amplifier is a 1-kVA, DC-enabled unit that provides advanced protection and exceptional versatility. It features a DC to 1 MHz bandwidth and improved performance at frequencies above 100 kHz. In continuous operation, a 7228 can provide up to four times the output power of the 7224 at frequencies above 100 kHz. If more current or power is needed, amplifiers can be combined in series or parallel and operate as a single system.

Back-panel switches allow the AE Techron 7228 be configured by the user for high-voltage/low-current, medium voltage and current, or low-voltage/high-current applications. Residual noise, slew rate, and gain linearity have all been improved over the 7224 model. It can safely drive a wide range of resistive, inductive loads. The 7228 is typically used to create waveforms as required by a variety of EMC standards for DC powered electronics like FMC 1278, DO-160, and MIL STD 461. It can also be used as a gradient amplifier for very small bore, high-gain MRI and NMR systems.

Specifications for the AE TECHRON 7228 RF Amplifier Include:
