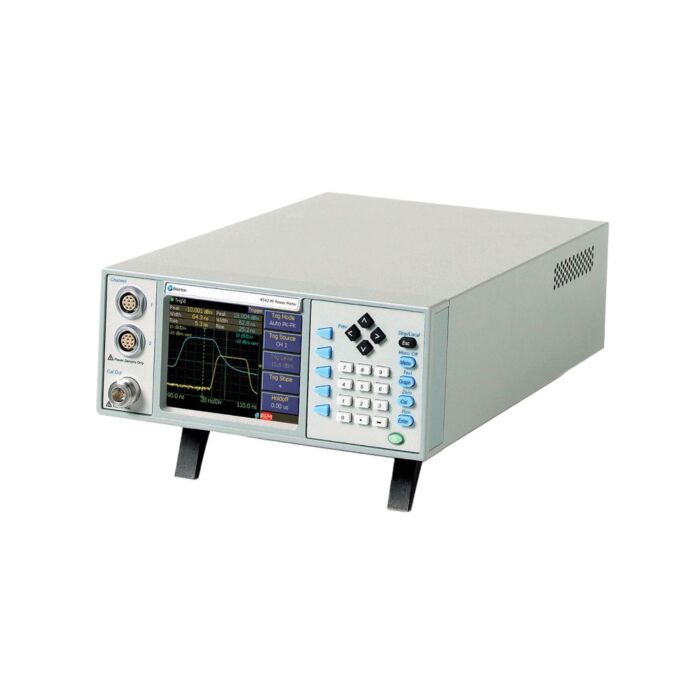

Boonton 4542 for Rent, RF Peak Power Meter, Dual Channel, 10 kHz - 40 GHz
Order #: 4542-RENT3
Mfg #: 4542
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
![Loading...](https://www.transcat.com/static/version1721668873/frontend/Transcat/default/en_US/images/loader-1.gif)
Product Highlights
The Boonton 4542 RF Power Meter is the instrument of choice for capturing, displaying and analyzing RF signals. Applications include pulsed RF signals like radar or gsm based technologies, as well as pseudorandom, noise-like signals such as cdma, evdo, wlan, wimax, umts, hspa, lte, ofdm or hdtv. Using Peak Power sensors, the Boonton 4542 can measure true average power of modulated waveforms, while providing important information about the instantaneous peak power value. Large digits allow clear, legible measurement reading. The 4542 has a 4" display providing high resolution and great detail of the signal trace.
The Boonton 4542 offers Pulse, Modulated/CW, and Statistical operating modes, making it well suited for all requirements of R&D, manufacturing and control operations. Features like high dynamic range, rise time of less than 7ns and an effective time resolution of 200 ps provide the greatest detail in signal waveform analysis. A variety of trigger settings, including pre and post trigger in combination with a high sampling rate allow the 4542 to capture any pulse. A wide range of power sensors and voltage probes is available for these instruments.
Features
- 200 ps time resolution
- 7 ns rise time
- Video bandwidth up to 70 MHz
- 17 default presets plus storage for 25 user-defined presets
- Fast statistical analysis including CCDF
- Text view of up to 14 out of 28 parameters per channel simultaneously (power/voltage, time, statistics, channel math)
- Bright, clear 4" color LCD display
- GPIB, LAN, USB device (B-type connector) interfaces
- High bandwidth, wide dynamic range sensors available
Frequency Range | 9.9 kHz - 40 GHz |
Peak Power Range | -50 to +20 dBm |
Average Power Range | -70 to +44 dBm |
Video Bandwidth | 70 MHz |
Time Resolution | 200 ps |
Sampling Rate | 5 GS/sec |
-
