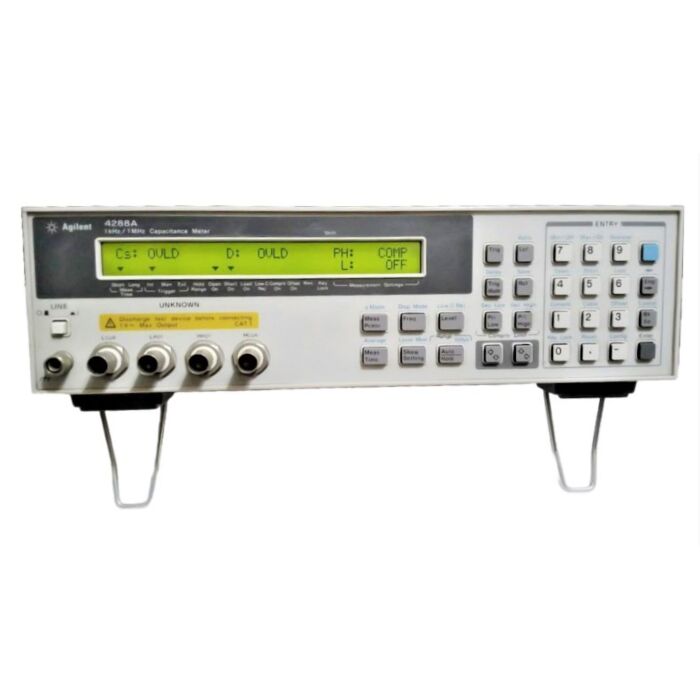

Keysight / Agilent 4288A for Rent, Capacitance Meter, 1kHz / 1MHz
Capacitance Meter, 1 kHz / 1 MHz
Order #: 4288A-RENT3
Mfg #: 4288A
Call for price
Call for price
Keysight / Agilent 4288A for Rent, Capacitance Meter, 1kHz / 1MHz
Capacitance Meter, 1 kHz / 1 MHz
Order #: 4288A-RENT3
Mfg #: 4288A
Call for price
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Call for price
Availability: Call for Availability
Product Highlights
The Agilent 4288A 1 kHz / 1 MHz capacitance meter offers high-speed with reliable measurements for capacitor testing in the production lines. The measurement capabilities of capacitance from low to middle values (up to 20 uF) can be realized with accurate measurements. The HP 4288A contributes improvements of the test throughput, while attaining excellent component quality for ceramic capacitor testing.
Specifications of the Agilent 4288A Capacitance Meter include:
Measurement Time:
High speed measurement: 6.5 msBasic Accuracy.
Accurate C-D testing: 0.07%, 0.0005Measurement Parameters: Cp-D, Cp-Q, Cp-Rp, Cp-G Cs-D, Cs-Q, Cs-Rs
Where,
- Cp: Capacitance value measured using the parallel equivalent circuit model
- Cs: Capacitance value measured using the series equivalent circuit model
- D: Dissipation factor
- Q: Quality factor (inverse of D)
- G: Equivalent parallel conductance measured using the parallel equivalent circuit model
- Rp: Equivalent parallel resistance measured using the parallel equivalent circuit model
- Rs: Equivalent series resistance measured using the series equivalent circuit model
