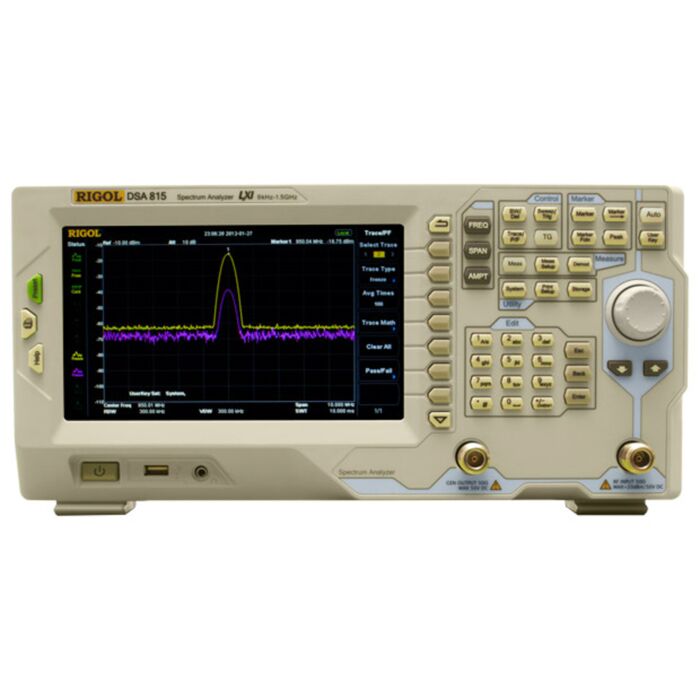

Rigol DSA800 Spectrum Analyzer
Order #: Rigol DSA800 Series Spectrum Analyzer
Rigol's new DSA800 series spectrum analyzers redefine the product category by setting new standards for performance and price. The DSA800 family features a unique widescreen display, compact design and easy-to-use interface and operations, making it ideal for benchtop or field apps in RF and wireless testing and production. The new spectrum analyzer offers the ability to measure smaller signals using our digital IF filter, which allows for smaller bandwidth settings and reduces displayed noise levels. In addition, Rigol offers great options including an EMI filter and quasi-peak detector kit, and tracking generator for all of these models. Whether your application is radio verification at 455 MHz or monitoring the 3rd harmonic of 2.4 GHz signals find the right spectrum analyzer in the updated DSA800 family.
Why Buy the Rigol DSA800 Series from Transcat? Calibration. Selection. Price.
Transcat is a leading supplier of Rigol instruments, and can offer accredited calibrations on new orders. Check out our ordering guide to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!
DSA800 series spectrum analyzers which are small, light and cost-effective, are portable spectrum analyzers designed for starters. Configured with easy-to-operate numeric keyboard, high-resolution color LCD display and various remote communication interfaces, they can be widely used in various fields, such as education, company research and development as well as industrial manufacture.
DSA800 Main Features
- The highest frequency: 1.5 GHz/3.2 GHz/7.5 GHz
- Displayed Average Noise Level (DANL):Phase Noise:Level Measurement Uncertainty:Minimum Resolution Bandwidth (RBW): 10 Hz
- EMI Filter and Quasi-Peak Detector Kit (Option)
- VSWR Measurement Kit (Option)
- AM/FM Demodulation Function
- Various measurement functions (option)
- 1.5 GHz Tracking Generator (DSA815-TG)/3.2 GHz Tracking Generator (DSA832-TG)/7.5 GHz Tracking Generator (DSA875-TG)
- 8 inch (800×480 pixels) high-definition display with clear, vivid, and easy-to-use graphical interface
- Various interfaces such as LAN, USB Host, USB Device and GPIB (option)
| Model | DSA815 | DSA815-TG | DSA832 | DSA832-TG | DSA875 | DSA875-TG |
|---|---|---|---|---|---|---|
| Frequency | ||||||
| Frequency Range | 9 kHz to 1.5 GHz | 9 kHz to 3.2 GHz | 9 kHz to 7.5 GHz | |||
| Frequency Resolution | 1 Hz | |||||
| SSB Phase Noise | 20° to 30°, fc=1GHz | |||||
| Carrier Offset | ||||||
| 10kHz | <-80dBc/Hz | <-98dBc/Hz | ||||
| 100kHz | <-100dBc/Hz (typ.) | <-100dBc/Hz (typ.) | ||||
| 1MHz | <-115dBc/Hz (typ.) | <-120dBc/Hz (typ.) | ||||
| Display | ||||||
| Type | TFT LCD | |||||
| Resolution | 800 x 480 pixels | |||||
| Size | 8 inch | |||||
| Colors | 64k | |||||
| Power Supply | ||||||
| Input Voltage Range, AC | 100 V to 240 V (nom.) | |||||
| AC Supply Frequency | 45 Hz to 440 Hz | |||||
| Power Consumption | 35 W (typ.), Max. 50 W with all options | |||||
| Dimension (WxHxD) | 361.6 mm × 178.8 mm × 128 mm (14.2 in × 7.0 in × 5.0 in) | |||||
| Weight | 9.4 lbs (4.25 kg) | 10.0 lbs (4.55 kg) | ||||
Product Highlights
- 9 kHz to 1.5, 3.2, or 7.5 GHz Frequency Range
- Displayed Average Noise Level (DANL) normalized to 1 Hz ranging from -135 dBm to -161 dBm typical
- -80 to -98 dBc/Hz @10 kHz offset Phase Noise
- Total Amplitude Uncertainty from <1.5 dB to <0.8 dB nominal
- 100 or 10 Hz Minimum Resolution Bandwidth (RBW) available
Each Unit Includes
- Packing Kit
- CD
- Calibration Certificate
- Power Cord
- USB Cable
