Tektronix 2-SOURCE License; Arbitrary Function Generator; Node-Locked
Order #: 2-SOURCE
Mfg #: 2-SOURCE
Product Highlights
License; Arbitrary Function Generator; Node-Locked

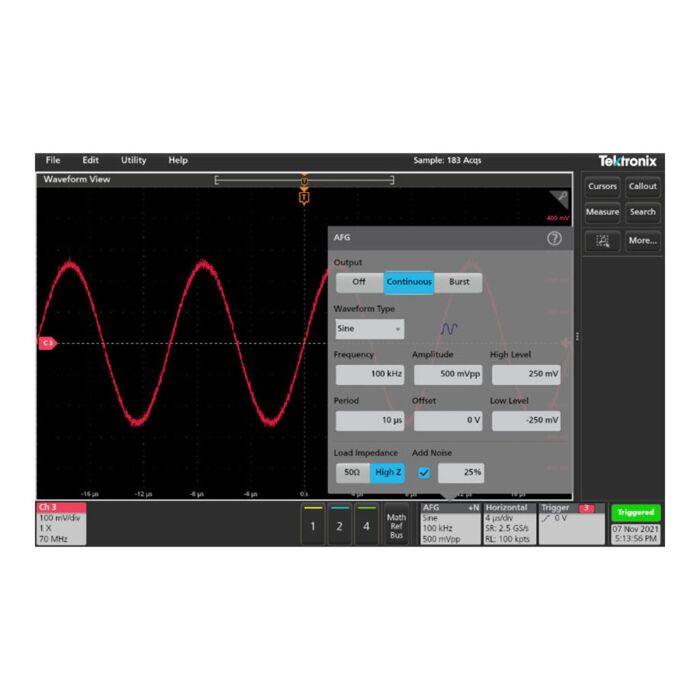

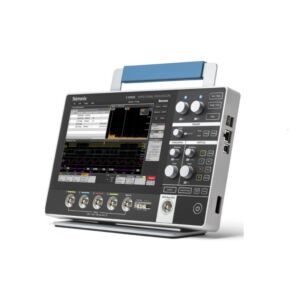

The 2 Series MSO optional 50 MHz arbitrary function generator is perfect for simulating sensor signals within a design or adding noise to signals to perform margin testing. The AFG output is multiplexed with the Aux out signal.
Several predefined waveforms including sine, square, pulse, ramp/triangle, DC, noise, sin(x)/x (Sinc), gaussian, lorentz, exponential rise/fall, Haversine, and cardiac are included.
The arbitrary waveform generator provides 128k points of record for loading waveforms captured on the analog input, a saved file. Alternatively Tektronix ArbExpress PC-based waveform creation and editing software can be used to create complex waveforms quickly and easily.
