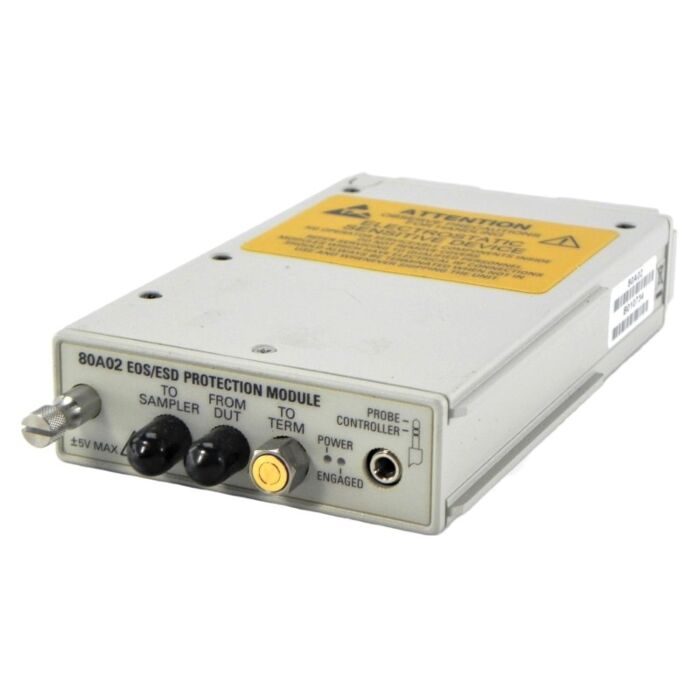

Tektronix 80A02 for Rent, Protection Module

Product Highlights

The Tektronix 80A02 EOS - ESD Protection module protects the sampling bridge of electrical sampling module inputs from damage due to electro-overstress (EOS) and electrostatic discharge (ESD) from circuit boards and cables. The Tektronix 80A02 is intended for use in applications such as electrical TDR circuit board testing and cable testing where large static charges can be stored in the DUT.

The Tektronix 80A02 plugs into any available electrical sampling module plug-in slot of the DSA/TDS/CSA8K Series, legacy CSA11K Series, or legacy CSA803 Series sampling oscilloscopes. The Tektronix 80A02 provides a front-panel SMA connector ffor connecting the SMA test cable or probe signal from the DUT. The Tektronix 80A02 passes the acquired DUT signal to a connected electrical sampling module input for measurement after an actuating control (from the matching P80318 or P8018 high-performance probe, or customer-provided external switch, TTL, or CMOS control logic input) which signals the Tektronix 80A02 that the DUT has been grounded to discharge any electrostatic charge remaining in the DUT.

• Single-channel Electrostatic Discharge (ESD) and Electro-overstress (EOS) Damage Protection for Tektronix Electrical Sampling Modules
• Plugs into and is Powered from Sampling Mainframe
• Compatible with Tektronix Extender Cables
• Electrical Sampling Module Input Protection for High-speed Electrical Signal Analysis
• Circuit-board Controlled Impedance Testing (TDR)
