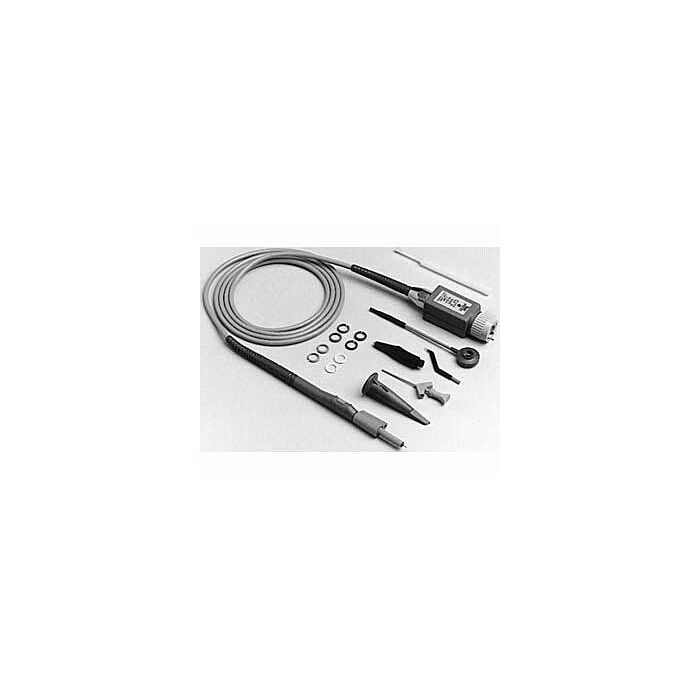

Tektronix P6131 for Rent, 300 MHz Passive Probe, 10X Attenuation, 10.8pF, 10MOhm
300 MHz Passive Probe 10X Attenuation, 10.8pF, 10MOhm
Order #: P6131-RENT2
Mfg #: P6131
Call for price
Call for price
Tektronix P6131 for Rent, 300 MHz Passive Probe, 10X Attenuation, 10.8pF, 10MOhm
300 MHz Passive Probe 10X Attenuation, 10.8pF, 10MOhm
Order #: P6131-RENT2
Mfg #: P6131
Call for price
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Call for price
Availability:
In stock
![Loading...](https://www.transcat.com/static/version1721668873/frontend/Transcat/default/en_US/images/loader-1.gif)
Tektronix P6131 Highlights
The P6131 probe is a subminiature, 10X, passive probe designed specifically for use with Tektronix 2400 Series oscilloscopes. It is fully compatible with the Tektronix family of subminiature probe accessories. The P6131 is available with 1.3 and 2 meter cable.
- Bandwidth : DC to 300 MHz (1.3 meter, 2465 or 7A42)
- DC to 250 MHz (2 meter, 2465 or 7A42)
- DC to 150 MHz (1.3 or 2 meter, 2445)
- Attenuation : 10X ±1% at DC
- Input Resistance : 10 MΩ ±1%
- Input Capacitance : 10.8 pF (1.3 meter)
- 13.5 pF (2 meter)
- Scope Input Resis : 1 MΩ
- Compensation Range : 14pF to 18pF
- Readout Pin : YES
- Ground Ref : NO
- ID Button : NO
- Max Rated Voltage : 300 VRMS (Cat I)
- 150 VRMS (Cat II)
- 100 VRMS (Cat III)
- Cable Length : 1.3 or 2 meters
- Net Weight : 3.8 oz (108 g) (1.3 meter)
- 4.8 oz (129 g) (2 meter)
- Scope Compatibility : 2400 Series (2445, 2465) and 7A42
