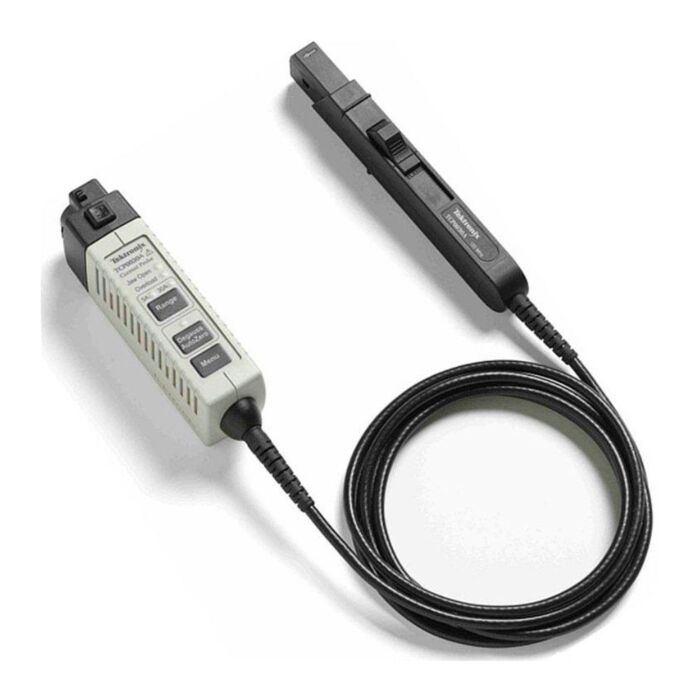

Tektronix TCP0030A for Rent, 120 MHz, 30 Amp AC/DC Current Probe with TekVPI Interface
Order #: TCP0030A-RENT2
Mfg #: TCP0030A-RENT2
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
![Loading...](https://www.transcat.com/static/version1721668873/frontend/Transcat/default/en_US/images/loader-1.gif)
Product Highlights
TCP0030A is a high-performance, easy-to-use AC/DC current probe designed for use and direct connection to oscilloscopes with the TekVPI™ probe interface. This AC/DC current measurement probe provides greater than 120 MHz of bandwidth with selectable 5 A and 30 A measurement ranges. It also provides exceptional low-current measurement capability and accuracy to current levels as low as 1 mA, important for meeting today's challenging current measurement needs.
Key features
- Easy-to-use and accurate AC/DC current measurements
- Intelligent communication with TekVPI™ oscilloscopes provides:
- Units scaling and readout. Automatic, on-screen readout of amps and magnitude. Manual setup is not required. Hand calculation from volts to amps is unnecessary
- Push button degauss and Autozero functionality
- Probe status and diagnostic indicator LEDs
- Remote GPIB/USB probe control
- Split-core construction allows easy circuit connection
- High accuracy with typically less than 1% DC gain error
- Low noise and DC drift
- 3rd party safety certification
Key performance specifications
- DC to >120 MHz bandwidth
- 30 A RMS maximum current capability
- 50 A peak pulse current capability
- High accuracy with typically less than 1% DC gain error
- Accurately measures current levels as low as 1 mA
Applications
- Power supplies
- Semiconductor devices
- Power inverters/converters
- Electronic ballasts
- Industrial/consumer electronics
- Mobile communications
- Motor drives
- Transportation systems
Electrical characteristics | Bandwidth | DC to ≥120 MHz |
---|---|
Rise time | ≤2.92 ns |
Maximum DC current | 30 A |
Maximum RMS current | 30 A |
Maximum peak pulse current | 50 A |
Maximum bare wire voltage | 150 V CAT II, (insulated wire 300 V CAT II) |
Sensitivity | 1 mA (on oscilloscopes that support 1 mV/div setting) |
DC accuracy | ±3% warranted |
Accuracy, typical |
DC: ±1% of reading DC to 60 Hz, ≤5 A: ±1% 60 Hz - 5 kHz, ≤5 A: ±1.5% DC - 5 kHz, >5 A: ±1.5% |
Maximum Amp-Second product | 500 A*µs (in 30 A range) |
Insertion impedance |
1 mΩ at 10 kHz 3.5 mΩ at 100 kHz 0.08 Ω at 1 MHz 0.15 Ω at 10 MHz 0.7 Ω at 100 MHz 0.85 Ω at 120 MHz |
Signal delay | 14.5 ns |
Current ranges | 5 A and 30 A |
Power requirements | TCP0030A is powered directly by oscilloscopes with the TekVPI™ interface. Note: For best support, download and install the latest version of the oscilloscope software from www.tek.com. | Physical characteristics |
Probe head | |
Length | 20 cm (7.77 in) |
Width | 1.6 cm (0.625 in) |
Height | 3.2 cm (1.25 in) |
Maximum conductor size | 5 mm (0.197 in) |
Cable length | 200 cm (79 in) |
Shipping weight | 1.55 kg (3.44 lb) |
EMC environment and safety | |
Temperature | Operating | 0 °C to 50 °C (32 °F to 122 °F) |
Nonoperating | -40 °C to +75 °C (-40 °F to 167 °F) |
Humidity | |
Operating | 5% to 95% Relative Humidity (RH) at up to +30 °C; 5% to 85% RH above 30 °C up to +50 °C, noncondensing |
Nonoperating | 5% to 95% Relative Humidity (RH) at up to +30 °C; 5% to 85% RH above 30 °C up to +75 °C, noncondensing |
Altitude | |
Operating | Up to 3,000 m (10,000 ft.) |
Nonoperating | Up to 12,192 m (40,000 ft.) |
Compliance labeling | CE (European Union), WEEE (European Union) |
-
