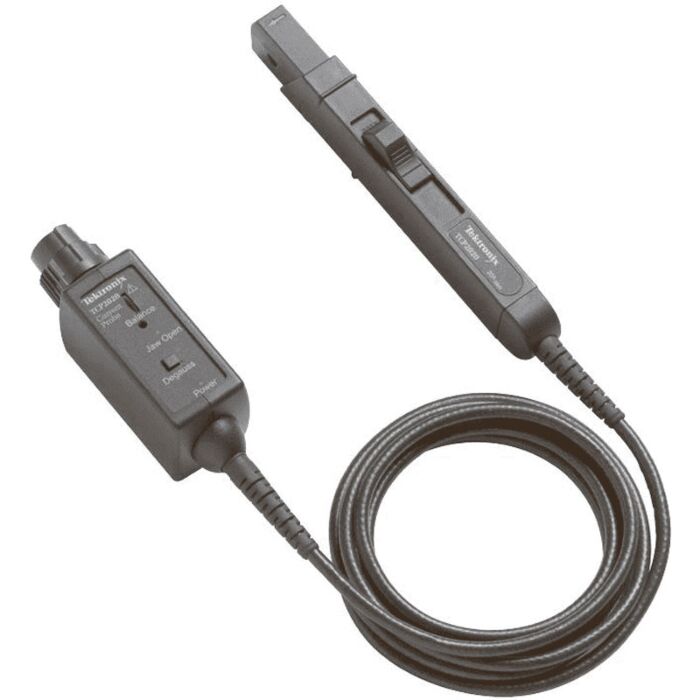

Tektronix TCP2020 Current Probe, DC Coupled, 50 MHz, 20A, BNC Interface

Product Highlights

TCP0020, TCP2020, TCP202A

The TCP0020, TCP2020, and TCP202A are a family of high-performance, easy-to-use AC/DC current probes designed for use with a variety of oscilloscopes. The TCP0020 is designed for direct connection to oscilloscopes with the TekVPI™ probe interface and the TCP202A is designed for direct connection to oscilloscopes with the TekProbe™ probe interface. The TCP2020 is designed for use with any instrument with BNC inputs and >100 kΩ input termination.

These AC/DC current probes provide sufficient performance to support 50 MHz measurement system bandwidth. The TCP0020 and TCP2020 provide a maximum 20 A_RMS measurement range, while the TCP202A provides a maximum 15 A_{DC + Peak AC} measurement range. These probes also provide excellent accuracy to current levels as low as 10 mA, important for meeting today's challenging current measurement needs.

• Features & Benefits
  • Easy-to-Use and Accurate AC/DC Current Measurements
  • DC to >50 MHz Bandwidth
  • Core Jaw Diameter of 5 mm (0.2 in.)
  • Accurately Measures Current Levels as Low as 10 mA per Division
  • High Accuracy with Typically Less than 1% DC Gain Error
  • Split-core Construction allows Easy Circuit Connection
  • Low Noise and DC Drift
  • Safety Certified

• TCP2020
  • 20 A_RMS Maximum Current Capability
  • 100 A Peak Pulse Current Capability
  • 10 mA/mV Sensitivity
  • BNC Output Connects to Most Oscilloscopes and Other Measurement Equipment (>100 kΩ Termination Required)
  • Degauss Button and Thumbwheel for DC Offset Adjustment
  • Powered by an AC Adapter
