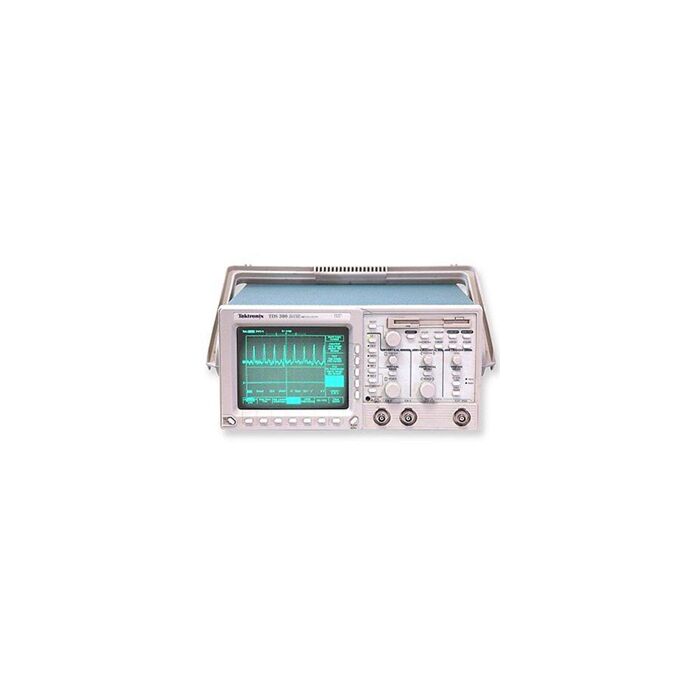

Tektronix TDS 380 for Rent, 400 MHz, 2 Channel Digital Real-Time Oscilloscope

Tektronix TDS 380 Highlights

The Tektronix TDS380 oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.

The Tektronix TDS380 oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the "moving parts" of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.

• Signal Acquisition System
• Bandwidth: 400 MHz
• Sample Rate: 2 GS/s on each channel
• Channels: two identical channels, each with invert function
• Sensitivity: 2 mV to 10 V/div (with calibrated fine adjust)
• Vertical Resolution: 8-Bits (256 levels over 10.24 vertical divisions)
• Time Base System (Main and Delayed)
• Time/Division Range: 1 ns to 5 s/div
• Record Length: 1000 sample points per channel
• Triggering System (Main Only)
• Triggering Types: Edge, Vide
• Option 14 (I/O Interface): Computer Interface and Hardcopy Capability
• GPIB (IEEE-488.2) Programmability
• RS-232 Interface Programmability
• Video Output
• Hardcopy Port - Centronics-type parallel or RS-232
• Graphics Interface File Formats - Interleaf (.img), TIFF, PCX (PC Paintbrush), BMP (Microsoft Windows), and Encapsulated Postscript (EPS)
• Printer Formats - ThinkJet, DeskJet, LaserJet, Epson (9 & 24 Pin), Seiko DPU 411/II, DPU 412
