Testo 350 for Rent, Portable Emission Analyzer

Order # 350-RENT1 | Mfg # 350-RENT1

For Rent

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

Removable operating and display unit via Bluetooth or data bus cable
Increased measurement range for unlimited measurements even when gas concentrations are higher

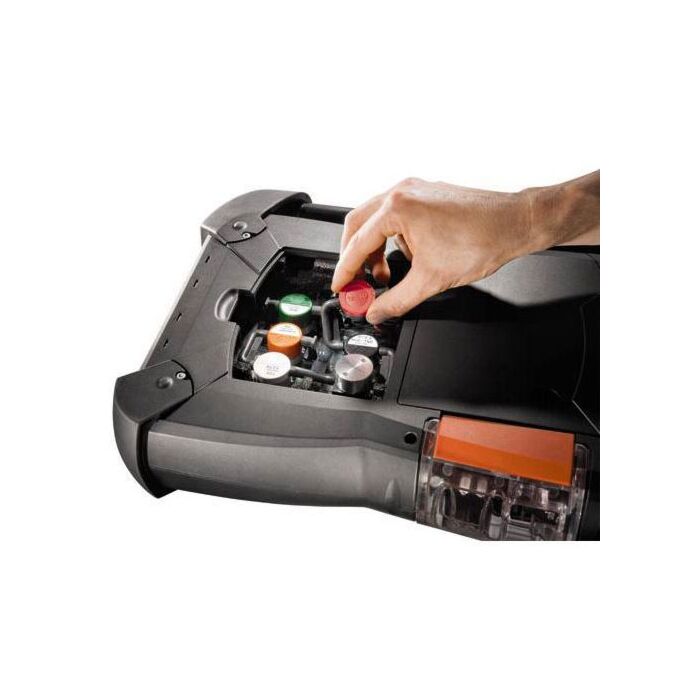

Easy-to-change gas sensors and easy access to wearing parts
Sealed housing with built-in impact protection for use in harsh conditions
Easy operation of the analyzer unit via Control Unit or easyEmission software (both products available separately)
Emission analysis with up to 6 gas sensors - freely configurable

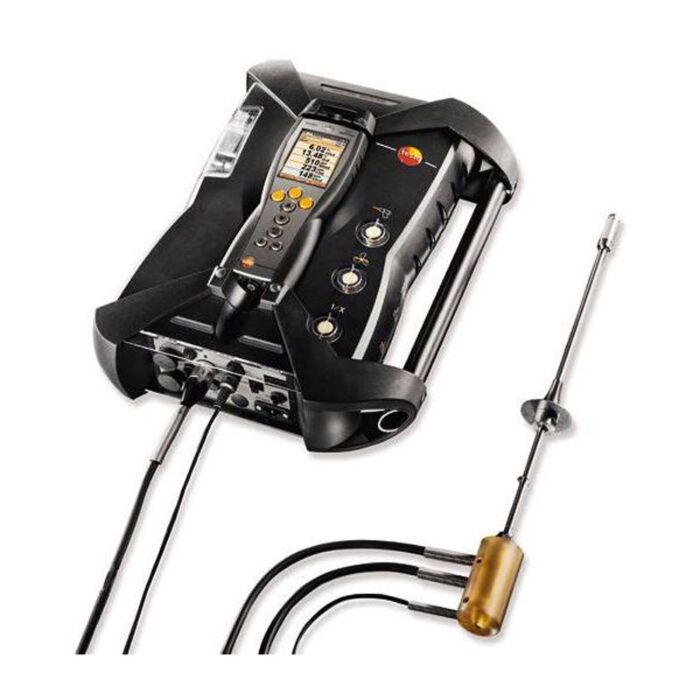

The testo 350 is a rugged, easy to use exhaust gas analyzer for carrying out precise industrial emission measurements and providing proper data administration. The Analysis Box can be operated with up to 6 gas sensors (5 optional). Select from sensors for CO, NO, NO₂, SO₂, H₂S, C_xH_y and CO₂

The rugged testo 350 exhaust gas analyzer is ideal for a wide range of professional industrial emission measurements and analysis applications, and is excellently suited for complex data compilation.

The testo 350 exhaust gas analyzer is made up of two separate units

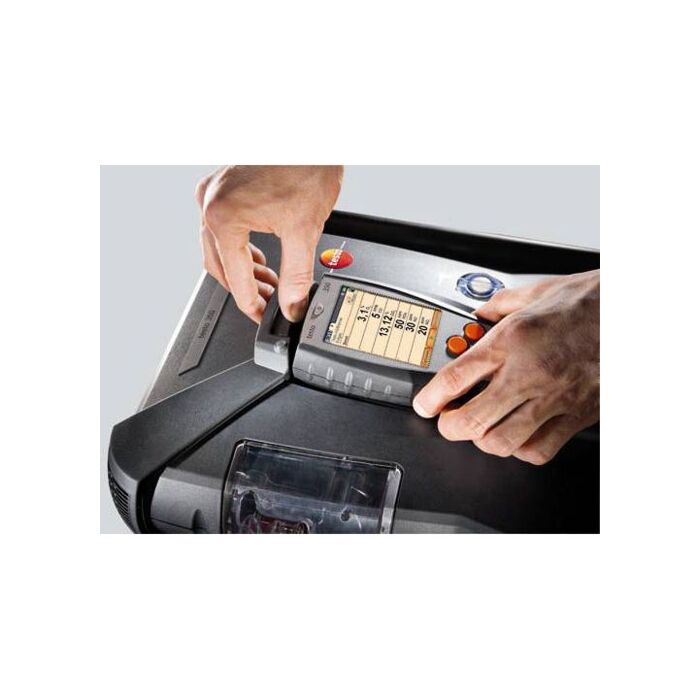

The testo 350 Control Unit is used to control emission measurements. It has a clearly structured graphic display, and four different menu applications to choose from, including burner / gas turbine / motors / user-defined applications. The instructions on the display guide you through the measurement and make the steps leading up to it easier. This saves both time and hassle. The Control Unit can also be used to control the Analysis Box when it is not at the exhaust gas pipe or measurement site. This is advisable when working on larger systems.

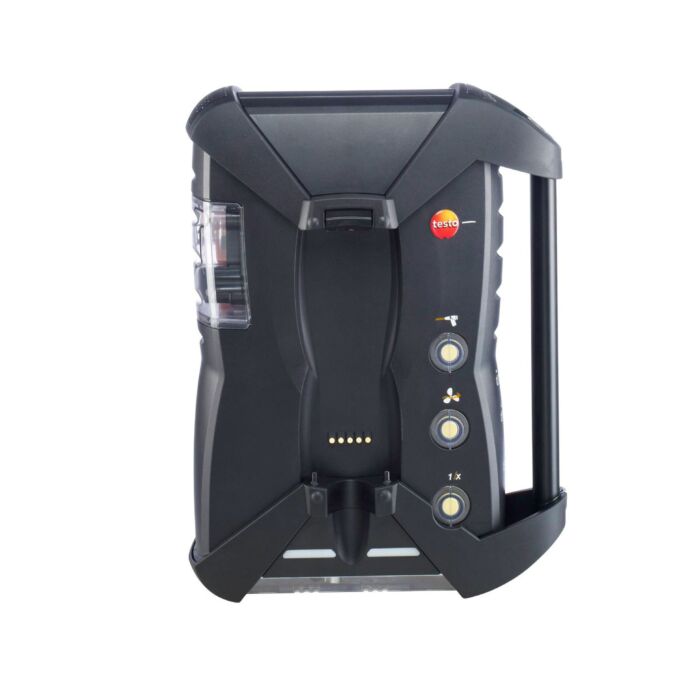

The testo 350 Analysis Box contains the sensor system and electronics. It comes standard equipped with an O₂ gas sensor. At least one more sensor (maximum of six) is needed to operate the Box. Optional sensors include sensors for CO, CO₂, NO, NO₂, SO₂, H₂S and C_xH_y

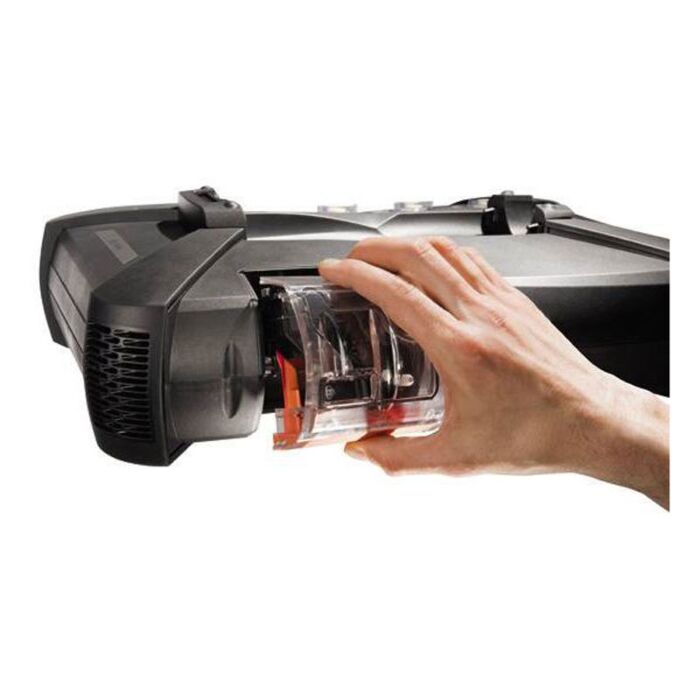

The increased measuring range (thinning) allows you to carry out unlimited measurements with higher gas concentrations. It is automatically activated when gas concentrations are unexpectedly high. The measuring range of a selected sensor can be increased by a certain factor. An opening on the underside gives you access to the relevant service and wearing parts, such as pumps and filters. The testo 350 also has numerous diagnosis functions with easy to understand readings and information. The analyzer constantly displays the current reading.

The Analysis Box can be controlled by the Control Unit or operated via USB, Bluetooth® 2.0, or CANCase from a PC or notebook. After the Analysis Box has been programmed, it can carry out measurements independently, save the results, and transfer the data to the Control Unit.

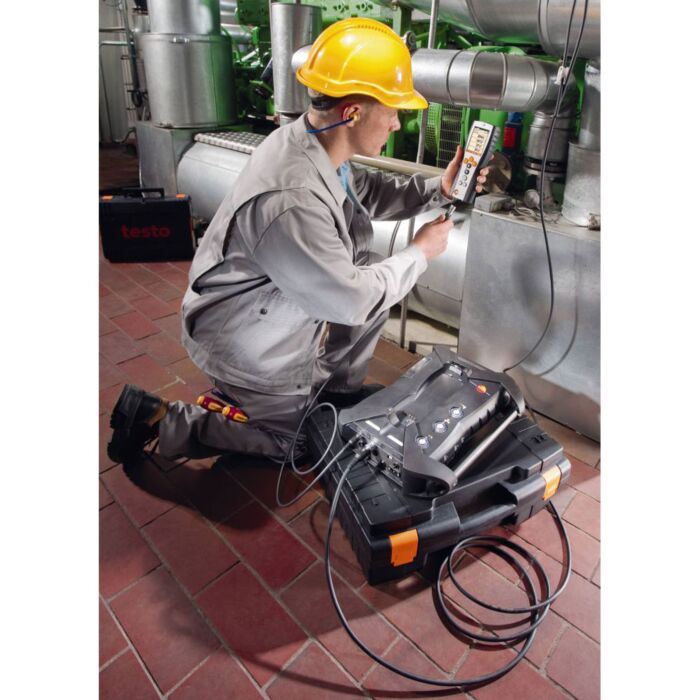

Conducting industrial emission measurements with the testo 350

The testo 350 exhaust gas analyzer has been specially designed for carrying out industrial emission measurements in the field. In the tab "Applications" you can find out more about:

Emission measurements on industrial motors
Emission measurements on burners
Emission measurements on gas turbines
Emission measurements on thermo processes

Delivery Scope

testo 350, O₂ sensor, differential pressure sensor, type K NiCr-Ni and type S temperature sensor port, Pt10Rh-Pt, testo data bus port, rechargeable battery, built in combustion air sensor (NTC), trigger port, data memory, carrying strap set for the Control Unit and Analysis Box, USB interface and calibration certificate.

Looking for another Portable Emissions Analyzer? Check out the SEITRON S9000.

Technical Resources

Testo 350 Datasheet
Testo 350 User Manual

Specifications

Temperature - NTC
Measuring range	-4° to 122 °F / -20 to +50 °C
Accuracy	±0.4 °F (14° to 122 °F) / ±0.2 °C (-10 to +50 °C)
Resolution	0.1 °F (-4° to 122 °F) / 0.1 °C (-20 to +50 °C)

Temperature - Type K TC
Measuring range	-328.0° to 2498.0 °F / -200 to +1370 °C
Accuracy	±0.7 °F (-148.0° to 392.0 °F) / ±0.4 °C (-100 to +200 °C) ±1.8 °F (-328.0° to -148.2 °F) / ±1 °C (-200 to -100.1 °C) ±1.8 °F (392.2° to 2498.0 °F) / ±1 °C (200.1 to +1370 °C)
Resolution	±0.1 °F (-328.0° to 2498.0 °F) / 0.1 °C (-200 to +1370 °C)

Temperature - TC Type S (Pt10Rh-Pt)
Measuring range	32.0° to 3200.0 °F / 0 to +1760 °C
Accuracy	±1.8 °F (32.0° to 3200.0 °F) / ±1 °C (0 to +1760 °C)
Resolution	±0.1 °F (32.0° to 3200.0 °F) / 0.1 °C (0 to +1760 °C)

Differential Pressure
Measuring range	-16 to +16 InH₂O / -40 to +40 hPa -80 to +80 InH₂O / -200 to +200 hPa
Accuracy	±1.5 % of mv (-16 to -1 InH₂O) / ±1.5 % of mv (-40 to -3 hPa) ±1.5 % of mv (+1 to +16 InH₂O) / ±1.5 % of mv (+3 to +40 hPa) ±0.01 InH₂O (-1.20 to +1.20 InH₂O) / ±0.03 hPa (-2.99 to +2.99 hPa) ±1.5 % of mv (-80 to -20 InH₂O) / ±1.5 % of mv (-200 to -50 hPa) ±1.5 % of mv (+20 to +80 InH₂O) / ±1.5 % of mv (+50 to +200 hPa) ±0.2 InH₂O (-20.0 to +20.0 InH₂O) / ±0.5 hPa (-49.9 to +49.9 hPa)
Resolution	0.01 InH₂O (-16 to +16 InH₂O) / 0.01 hPa (-40 to +40 hPa) 0.1 InH₂O (-80 to +80 InH₂O) / 0.1 hPa (-200 to +200 hPa)

Absolute Pressure
Measuring range	240 to +460 InH₂O / 600 to +1150 hPa
Accuracy	±4 InH₂O / ±10 hPa
Resolution	1 InH₂O / 1 hPa

Flue gas O₂
Measuring range	0 to +25 Vol.%
Accuracy	±0.8% of fsv (0 to +25 Vol.%)
Resolution	0.01 Vol.% (0 to +25 Vol.%)
Reaction time t90	20 sec (t95)

Flue gas CO
Measuring range	0 to +10000 ppm
Accuracy	±5 % of mv (+200 to +2000 ppm) ±10 % of mv (+2001 to +10000 ppm) ±10 ppm (0 to +199 ppm)
Resolution	1 ppm (0 to +10000 ppm)
Reaction time t90	40 sec

Flue gas COlow
Measuring range	0 to 500 ppm
Accuracy	±5 % of mv (+40 to +500 ppm) ±2 ppm (0 to +39.9 ppm)
Resolution	0.1 ppm (0 to +500 ppm)
Reaction time t90	40 sec

Flue Gas NO
Measuring range	0 to +4000 ppm
Accuracy	±5 % of mv (+100 to +1999 ppm) ±10 % of mv (+2000 to +4000 ppm) ±5 ppm (0 to +99 ppm)
Resolution	1 ppm (0 to +4000 ppm)
Reaction time t90	30 sec

Flue gas NOlow
Measuring range	0 to +300 ppm
Accuracy	±5 % of mv (+40 to +300 ppm) ±2 ppm (0 to +39.9 ppm)
Resolution	±0.1 ppm (0 to +300 ppm)
Reaction time t90	30 sec

Flue Gas NO₂
Measuring range	0 to +500 ppm
Accuracy	±5 % of mv (+100 to +500 ppm) ±5 ppm (0 to +99.9 ppm)
Resolution	0.1 ppm (0 to +500 ppm)
Reaction time t90	40 sec

Flue Gas SO₂
Measuring range	0 to +5000 ppm
Accuracy	±5 % of mv (+100 to +2000 ppm) ±10 % of mv (+2001 to +5000 ppm) ±5 ppm (0 to +99 ppm)
Resolution	1 ppm (0 to +5000 ppm)
Reaction time t90	30 sec

Efficiency (calculated)
Measuring range	0 to +120 %
Resolution	0.1 % (0 to +120 %)

Flue Gas loss (calculated)
Measuring range	0 to +99.9 %
Resolution	0.1 % (0 to +99.9 %)

Flue Gas dewpoint (calculated)
Measuring range	0 to +99.9 °Ctd
Resolution	0.1 °Ctd (0 to +99.9 °Ctd)

Flue Gas CO₂ calculation (calculated from O₂)
Measuring range	0 to CO₂ max
Accuracy	calculated from O₂ ±0.2 Vol.%
Resolution	0.01 Vol.%

Flue gas H₂S
Measuring range	0 to +300 ppm
Accuracy	±5 % of mv (+40 to +300 ppm) ±2 ppm (0 to +39.9 ppm)
Resolution	0.1 ppm (0 to +300 ppm)
Reaction time t90	35 sec

Flue Gas CO₂ - NDIR
Measuring range	0 to +50 Vol.%
Accuracy	±0.3 Vol.% + 1 % of mv (0 to 25 Vol.%) ±0.5 Vol.% + 1.5 % of mv (>25 to 50 Vol.%)
Resolution	0.01 Vol.% (0 to 25 Vol.%) 0.1 Vol.% (> 25 Vol.%)
Reaction time t90	10 sec

Velocity / Volume flow
Measuring range	0 to +7874 fpm / 0 to +40 m/s
Resolution	19.7 fpm (0 to +7874 fpm) / 0.1 m/s (0 to +40 m/s)

Methane (CH?)
Measuring range	100 to 40000 ppm
Accuracy	< 400 ppm (100 to 4000 ppm) < 10 % of mv (> 4000 ppm)
Resolution	10 ppm
Min. O₂ requirement in flue gas	2 % + (2 x mv methane)
Reaction time t90	< 40 sec
Response factor	1

Propane (C3H8)
Measuring range	100 to 21000 ppm
Accuracy	< 400 ppm (100 to 4000 ppm) < 10 % of mv (> 4000 ppm)
Resolution	10 ppm
Min. O₂ requirement in flue gas	2 % + (5 x mv propane)
Reaction time t90	< 40 sec
Response factor	1.5

Butane (C4H10)
Measuring range	100 to 18000 ppm
Accuracy	< 400 ppm (100 to 4000 ppm) < 10 % of mv (> 4000 ppm)
Resolution	10 ppm
Min. O₂ requirement in flue gas	2 % + (6.5 x mv butane)
Reaction time t90	< 40 sec
Response factor	2

General technical data
Weight	169 oz. / 4800 g
Dimensions	13 x 5 x 17 in. / 330 x 128 x 438 mm
Operating temperature	23.0° to 113.0 °F / -5 to +45 °C
Housing	ABS
Protection class	IP40
Connectable probes	1 x combustion air temperature probe; 1 x flue gas probe; 1 x temperature probe; 1 x differential pressure
Product colour	Black
Battery type	lithium batteries
Battery life	5 h
Power supply	AC mains unit 100V to 240V (50 to 60 Hz)
DC electric tension input	11V to 40V
Pump flow	1 l/min. with through-flow monitoring
Hose length	16.2 m (corresponds to 5 probe hose extensions)
Max. pos. press./flue gas	0.725 psi / 50 mbar
Max. neg. press./flue gas	-4.351 psi / -300 mbar
Max. dust load	20 g/m³ dust in flue gas
Dewpoint calculation	0 °Ctd; 99 °Ctd
Max. humidity load	70 °C dewpoint temperature
Trigger input	Voltage 5 to 12 Volt (rising or trailing edge) pulse width > 1 sec load: 5 V/max, 5 mA, 12 V/max. 40 mA
Maximum	250,000 readings

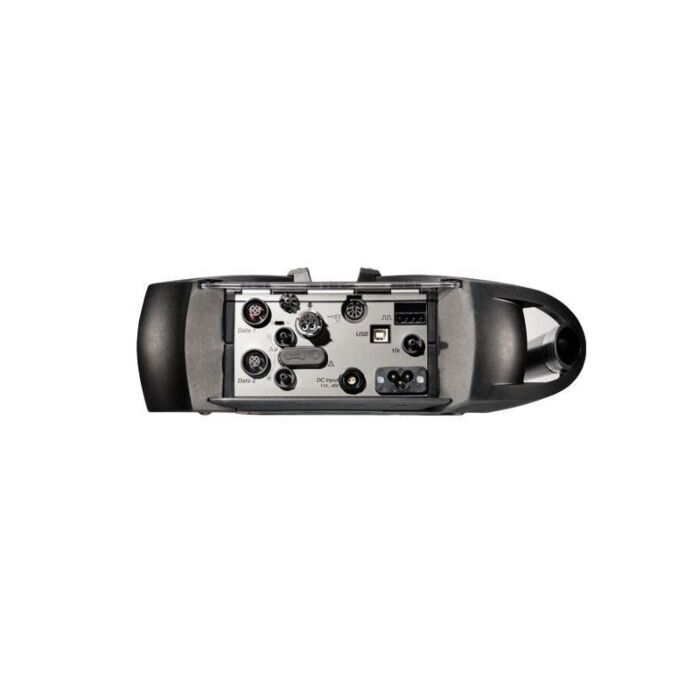

Interface	data bus; Bluetooth®; USB; IR/IRDA interface; Mains connection; trigger input; Differential Pressure; probe input/ probe inputs; DC-voltage input; dilution gas inlet for measurement range extension
Storage temperature	-4.0° to 122.0 °F / -20 to +50 °C
