Used Keysight / Agilent E4419A EPM Series Dual-Channel Power Meter
Order #: E4419A-USED
Mfg #: E4419A
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Product Highlights

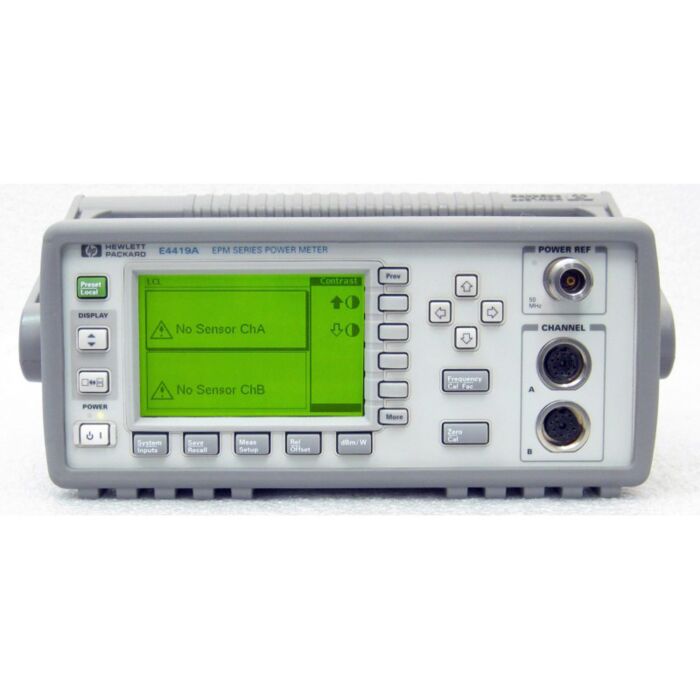

The Keysight E4419A is a low-cost, high-performance, dual-channel, programmable power meter. It is fully compatible with the 8480 series of power sensors and the E-series of power sensors (except the E9320A Family).
Depending upon which sensor is used, the E4419A can measure from -70 dBm to +44 dBm at frequencies from 100 kHz to 110 GHz.
Designed for bench and automatic test equipment use (ATE), the E4419A makes fast (up to 100 readings per second with E-series sensors), accurate and repeatable power measurements.
The E4419A is a true dual-channel power meter, which means that you get two simultaneous power readings on the display.
- Fast measurement speed (up to 100 readings per second, over the GPIB, with E-series sensors)
- Speed improvement of x2 using the 8480 series power sensor (compared to 437B)
- No range-switching delays with 8480 series sensors, and only one fast-range switching point with E-series sensors
- High-resolution display with backlighting for a wide viewing angle of displayed data
- Save and recall of up to 10 instrument states
- GPIB connector for remote control of all functions
- Code compatibility with 438A
- Conformity to CE and CSA standards
-
