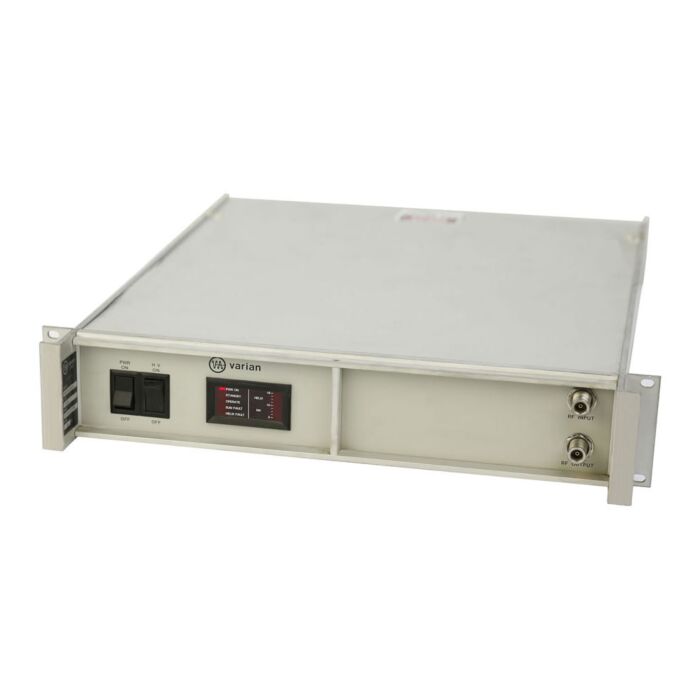

Used Varian VZL-6941K1 TWT Amplifier, 1-2GHz, 10W, 35dB Gain
TWT Amplifier,1-2GHz 10W,35dB Gain

Order #: VZL-6941K1-USED

Mfg #: VZL-6941K1-USED

Questions about availability or need help? Contact Us:

(800) 633-0561
$4,999.00

Used Varian VZL-6941K1 TWT Amplifier, 1-2GHz, 10W, 35dB Gain

TWT Amplifier,1-2GHz 10W,35dB Gain

Order #: VZL-6941K1-USED

Mfg #: VZL-6941K1-USED

$4,999.00

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Availability: Call for Availability
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
Power 20 Watts
Frequency 1.0 GHz to 2.0 GHz
Gain 40 dB
O/P Conn. N
Impedance 50 ohms nominal
VSWR Input: 2.0:1 typical
Output: 2.0:1 typical
Load 1.3:1 max. for full spec compliance. 2.0:1 mas for no damage
Noise & Spurious -50 dBc typical excluding harmonics and residual modulation
Residual AM -40 dBc
Residual FM Less than 4 kHz peak-to-peak in any 5 MHz band
AM/PM Conversion 2.5 /dB typical at 6 dB below rated output
Noise Figure 35 dB max. for L-Band and above
Harmonic Content -3 dBc at lower band edge decreasing to -15 dBc (typical) at upper band edge without optional harmonic filter. -20 dBc for P-Band models
Dimension 3.5 x 19 x 19.25 inches L-Band and above 7 x 19 x 18.1 inches P-band models
