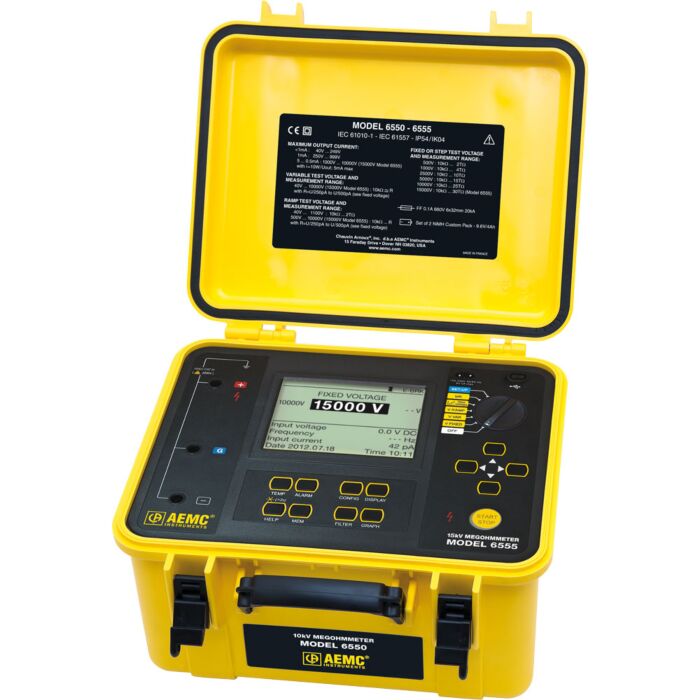

AEMC Instruments 6555 for Rent, Megohmmeter / Insulation Tester, 15 kV

Product Highlights

• Detection and measurement of input voltage, frequency, and current prior to running a test
• Measurements at a fixed test voltage of 500, 1000, 2500, 5000, 10,000 or 15,000VDC
• Measurements at an adjustable test voltage between 40 and 15,000VDC
• Ramp voltage measurements with a ramp from 40 to 1100V or from 500 to 15,000V
• Step voltage measurements with steps from 40 to 15,000V
• Non-destructive (Early break) test, test stopped at a preset current (Break at I-limit) or Burn mode with no predefined stop point
• Digital filtering of insulation measurements
• Live measurement of the voltage to warn the operator of potential unsafe conditions
• Programmable thresholds to trigger audible
• Timed measurement duration checks
• Fuse protection with display indication of defective fuse condition
• Stores up to 80,000 measurements
• Optically-isolated USB communication for transfer onto PC and and report generation with the included DataView® software

Each Unit Includes

• One red, blue and black 9ft 15kV integral lead (blue)
• One red, blue and black alligator clip (1000V CAT IV)
• One red and blue test probe (1000V CAT IV)
• Optical USB cable
• US 115V power cord
• Small classic tool bag
• User manual
