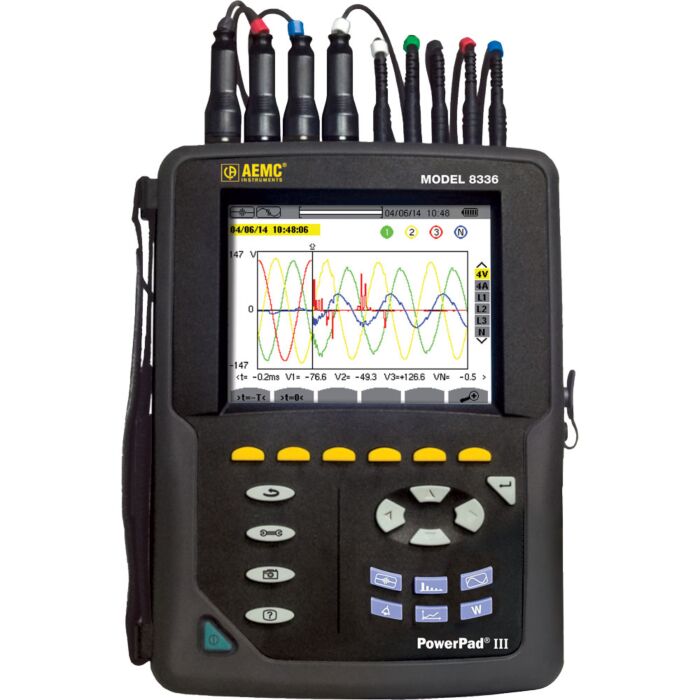

AEMC Instruments 8336 PowerPadIII Model 8336 with MN193-BK Probes

Product Highlights

• Measurement of TRMS Voltages Up to 1000Vrms AC/DC for Two-, Three-, Four- or Five-Wire Systems
• Measurement of TRMS Currents Up to 10,000Arms (Sensor Dependent)
• Direct Measurement of Neutral Current and Voltage
• Frequency Measurement (40 to 69Hz Systems)
• Record and Display Trend Data as Fast as Once Per Second for One Month for Up to 25 Variables
• Transient Detection on all V and I Inputs (Up to 210)
• Selectable PT and CT Ratios
• Inrush Current Measurement
• Calculation of Crest Factors for V and A
• Calculation of The K-Factor for Transformers
• Calculation of Short-Term and Long-Term Flicker
• Calculation of the Three-Phase Voltage Unbalance
• Harmonic Measurements (Referenced to the Fundamental or RMS Value) for Voltage, Current or Power, Up to 50th Harmonic
• Stores Up to 10,000 Alarm Events
• Displays of Harmonic Sequencing and Direction and Calculation of Overall Harmonics
• Real-Time Display of Phasor Diagrams Including Values and Phase Angles
• Monitors the Average Value of any Parameter, Calculated for a Period from 1 Sec to 2 Hrs
• Measurement of Active, Reactive and Apparent Power Per Phase and Their Respective Sum Total
• Calculation of Power Factor, Displacement Power Factor and Tangent Factor
• Recording, Time Stamping and Characterization of Disturbance (Swells, Sags and Interruptions, Exceedence of Power and Harmonic Thresholds)
• 2GB Internal Trend Recording Memory
• Additional Memory for Alarm, Transient, Inrush and Snapshot Storage
• Measurement of Energy VAh, VARh, Wh and VADh
• 65μs/Sample Trend Recording
• The Max and Min RMS Measurements are Calculated Every Half-Period

Each Unit Includes

• Dataview® Software for Configuring Data Storage
• Real-Time Display
• Analysis and Report Generation
