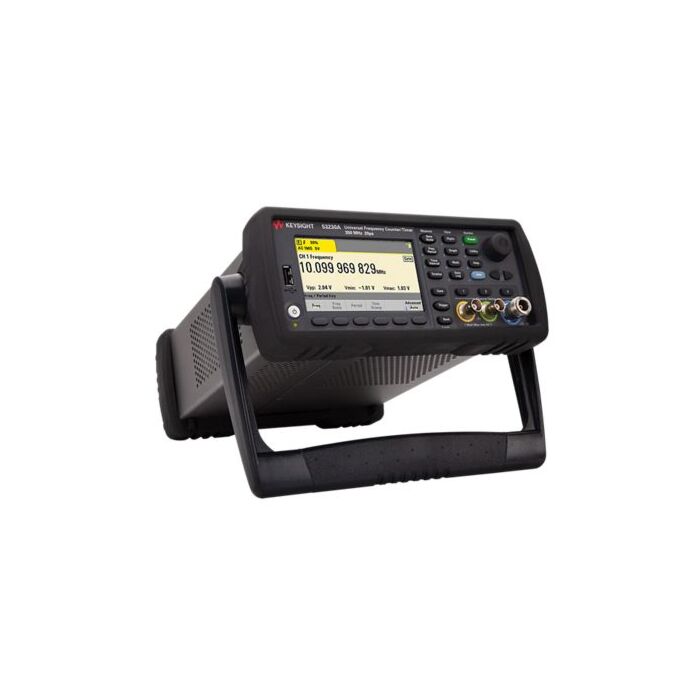

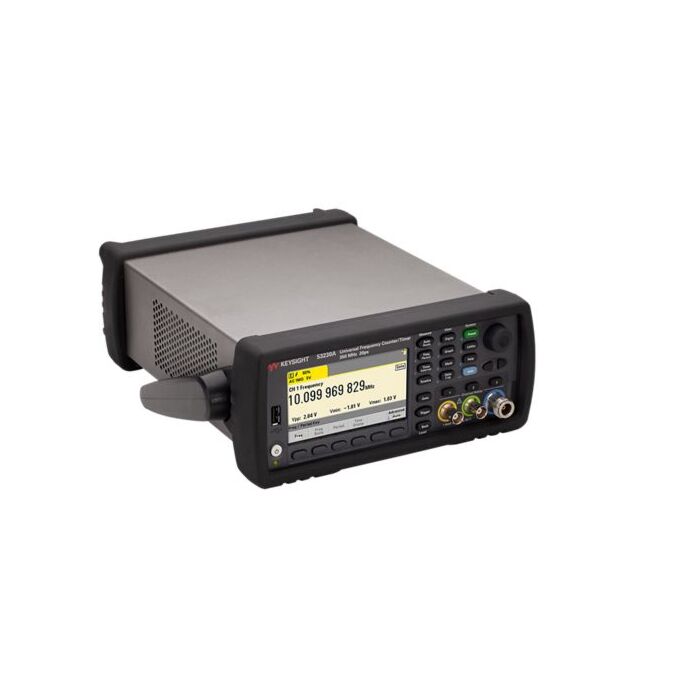

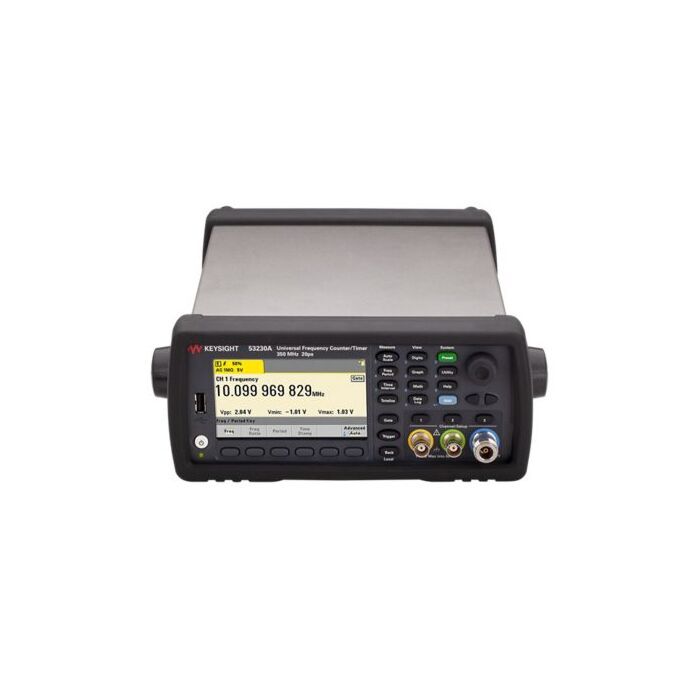

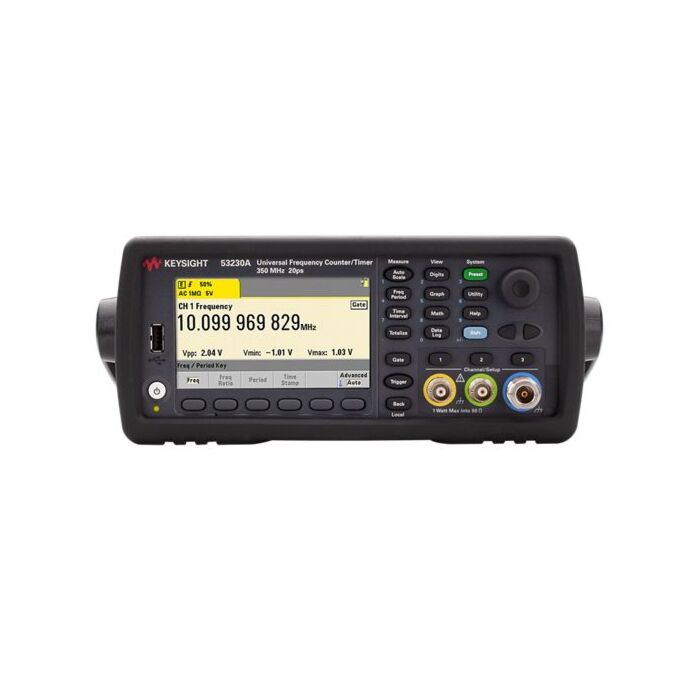

Keysight 53230A Universal Counter/Timer, 350MHz, 12 digits/s, 20ps, LAN, USB, GPIB
Universal Counter/Timer,350MHz, 12 digits/s,20ps,LAN,USB,GPIB

Order #: 53230A

Mfg #: 53230A

Questions about availability or need help? Contact Us:

(800) 633-0561
$6,034.00

Keysight 53230A Universal Counter/Timer, 350MHz, 12 digits/s, 20ps, LAN, USB, GPIB

Universal Counter/Timer,350MHz, 12 digits/s,20ps,LAN,USB,GPIB

Order #: 53230A

Mfg #: 53230A

Loading...
Print Email Save Item Compare
$6,034.00
Register to view exclusive member pricing
Availability:
In stock

 Ships Free Over $100

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States and Canada only.
This item is available as RENTAL at
Call for price
Shop now
This item is available USED at
$7,299.00
Shop now

Product Highlights

  • Two 350 MHz input channels, plus optional third channel (6 GHz or 15 GHz)
  • 12 digits/second resolution, 20 psec time interval resolution

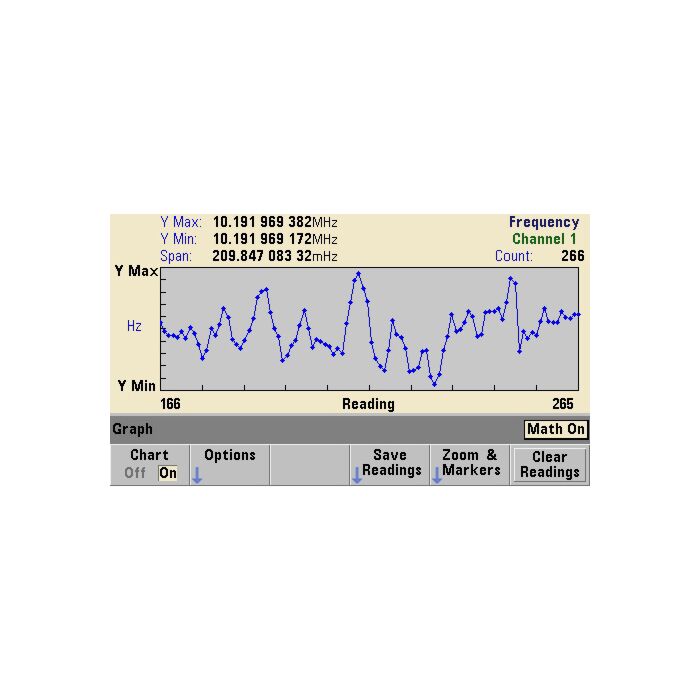

  • Built-in math analysis and color, graphical display (trend and histogram)
  • Continuous, gap-free measurements and timestamps for basic modulation domain analysis

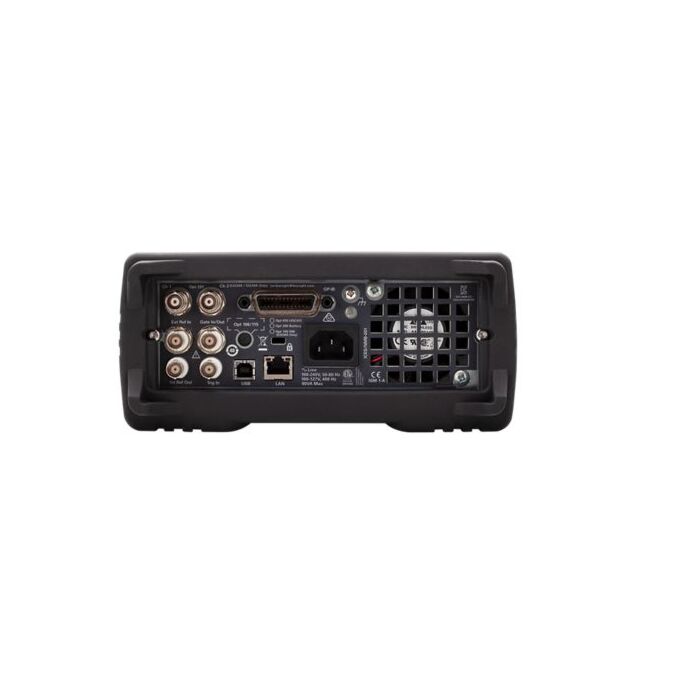

  • LXI-C/LAN, USB, GPIB
  • Optional: Lithium Ion Battery
  • A BenchVue software makes it simple to connect, control instruments, and automate test sequences

The Keysight 53230A universal frequency counter/timer serves all your frequency and time interval measurement needs. In addition to the typical frequency and time interval measurements, continuous/gap-free measurements are available for basic modulation domain analysis. The burst measurement software is available. An optional microwave channel can be added to measure 6 or 15 GHz.

Each Unit Includes

  • IEC Power Cord
  • USB cable
