Order #: E36231A
Mfg #: E36231A

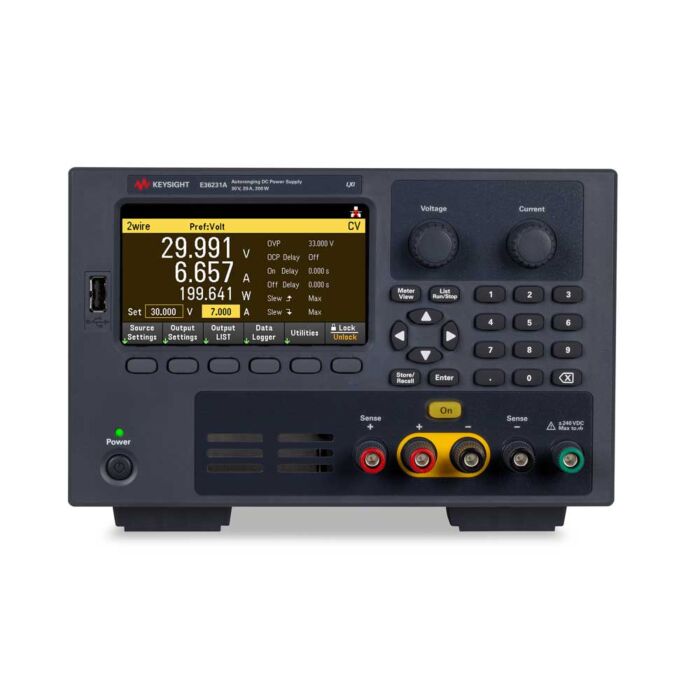

Keysight E36231A DC Power Supply, Single-output, 30 V, 20 A, 200 W: LAN, USB
Order #: E36231A
Mfg #: E36231A
![Loading...](https://www.transcat.com/static/version1724161005/frontend/Transcat/default/en_US/images/loader-1.gif)
Product Highlights
The E36200 Series single and dual output power and are intended for your bench applications that require power up to 400 W. Autoranging technology gives you the highest current available at all output voltage. Power devices with up to 40 A (E36233A) or voltage up to 120 V (E36234A) use an auto-parallel or auto-series to internally connect the two outputs into a single output with twice the power. A single output supply can power devices requiring less than 200 W or two devices are powered simultaneously with a dual output power supply.
The E36200 Series is fully SCPI programmable power supplies with built-in USB, LAN, and optional GPIB interfaces. Advance features include data logging, LIST mode, and synchronization through input and output triggers. High current applications benefit from an adjustable slew rate and remote 4-wire sense. Adjustable slew rate is necessary to avoid large inrush currents while remote sense ensures the correct output voltage at the DUT compensating for losses in the leads due to the higher currents.
- Autoranging DC power supply 30V, 20A, 200W
- Low output ripple and noise
- Excellent programming/readback accuracy
- Excellent line/load regulation
- 2-wire or 4-wire remote sense
- Over voltage, over current, and over temperature protection
- Thermal-control fan speed for lower acoustic noise
- Auto series/parallel connections
- Front and rear output terminal
- 4.3-inch LCD color display
- Color coded channels
- Individual knobs for voltage and current
- E3633A and E3634A code compatible
- LAN (LXI), USB and GPIB (optional)
- Data logging
- Output sequencing
- LIST mode
- Low range current measurement
- Adjustable voltage slew rate
Each Unit Includes
- AC power cord
- One digital IO connector
- One rear output connector
-
