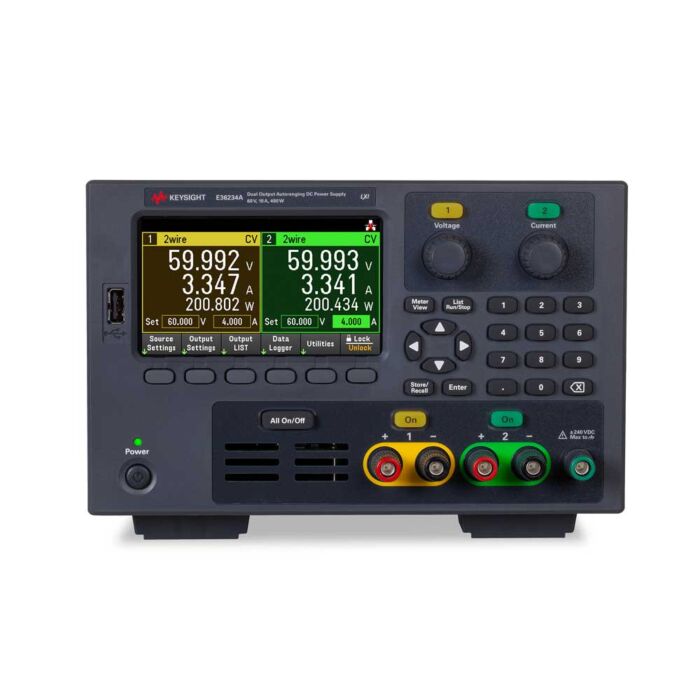

Keysight E36234A DC Power Supply, Dual-output, 2 X 60 V, 10 A, 400 W: LAN, USB
Dc Power Supply, Dual-output, 2 X 60 V, 10 A, 400 W: Lan, Usb
Order #: E36234A
Mfg #: E36234A
$3,631.00
Keysight E36234A DC Power Supply, Dual-output, 2 X 60 V, 10 A, 400 W: LAN, USB
Dc Power Supply, Dual-output, 2 X 60 V, 10 A, 400 W: Lan, Usb
Order #: E36234A
Mfg #: E36234A
$3,631.00
Availability:
In stock
![Loading...](https://www.transcat.com/static/version1724161005/frontend/Transcat/default/en_US/images/loader-1.gif)
Product Highlights
- Output Rating- 400 W
- Output 1: 200W, 0 to 60 V, 0 to 10 A
- Output 2: 200W, 0 to 60 V, 0 to 10 A
- Programming Accuracy +/- (% of output + offset)
- Voltage: 0.03% + 8 mV
- Current: 0.1% + 3 mA
- Ripple & Noise (20 Hz to 10 MHz)
- Normal Mode Voltage: <350 µVrms / 3.5 mV p-p
- Normal-mode current: <1 mA rms
- Readback Accuracy /- (% of output + offset)
- Voltage: 0.03% + 8 mV
- Current: 0.1% + 3 mA
- Low Range Current, <50 mA: 0.25% + 80 uA
The E36200 series consists of two 200 W single output power supplies and two 400 W dual output power supplies. Autoranging technology provides the highest current available at all output voltage. Power devices with up to 40 A (E36233A) or voltage up to 120 V (E36234A) using auto-parallel or auto-series to internally connect the two outputs into a single output with twice the power. A single output supply can power devices requiring up to 200 W. A dual output supply provides two independent 200 W channels which can be combined into a single 400 W channel.
Each Unit Includes
- AC power cord
- One digital IO connector
- Two rear output connector
- Keysight E363GPBU GPIB User Installable Interface ModuleGPIB User Installable Interface Module
Order #: E363GPBU
Mfg #: E363GPBU
Availability: Ships in 4-6 weeks$389.00
