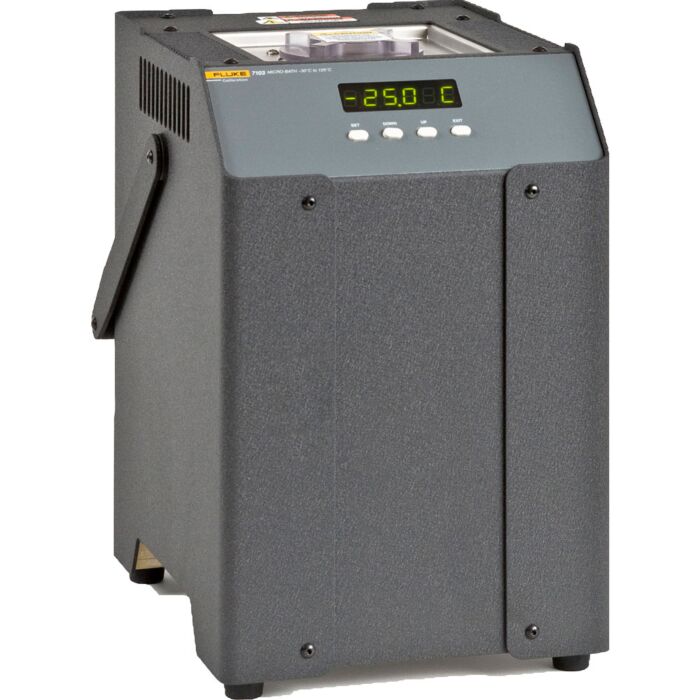

Fluke Calibration 6102, 7102, 7103 Micro-Bath Thermometer Calibrators
Order #: Fluke Calibration Micro-Bath Thermometer Calibrators
Need portability and extreme stability? Fluke 6102, Fluke 7102, and Fluke 7103 Micro-Baths have both. We invented the Micro-Bath. And, while many have tried to duplicate it, none of them use proprietary Fluke Calibration controllers, so none of them deliver performance like a Fluke Calibration bath. Micro-Baths can be used anywhere for any type of sensor. The 6102 weighs less than 4.5 kg (10 lb.), with the fluid. It’s lighter and smaller than most dry-wells, has a spill-proof lid, and is easier to carry than your lunch. You can take it where you need to go without carts or excessive effort. Micro-Baths can even be transported with the fluid in them.
Why Buy the Fluke Calibration Micro-Bath Thermometer Calibrator from Transcat? Calibration. Selection. Price.
Transcat is a leading supplier of Fluke Calibration instruments, and can offer accredited calibrations on new orders. Check out our ordering guide to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!
Wherever you go with your Micro-Bath, you can count on its performance. Each model is stable to ±0.03 °C or better, depending on the fluid you use. Uniformity is ±0.02 °C or better for low uncertainties using a reference thermometer. Display accuracy has been improved to ±0.25 °C for quick calibrations without a reference thermometer. In short, you get the stability and precision of a liquid bath in a dry-well-sized package. Don’t be fooled by competitors who pour oil into a dry-well and call it a bath. Micro-Baths are maximized for true fluid-bath performance.
Model | 6102 | 7102 | 7103 |
---|---|---|---|
Range | 35 °C to 200 °C (95 °F to 392 °F) | –5 °C to 125 °C (23 °F to 257 °F) | –30 °C to 125 °C (–22 °F to 257 °F) |
Accuracy | ± 0.25 °C | ||
Stability | ± 0.02 °C at 100 °C (oil 5013) ± 0.03 °C at 200 °C (oil 5013) |
± 0.015 °C at –5 °C (oil 5010) ± 0.03 °C at 121 °C (oil 5010) |
± 0.03 °C at –25 °C (oil 5010) ± 0.05 °C at 125 °C (oil 5010) |
Uniformity | ± 0.02 °C | ||
Resolution | 0.01 °C/°F | ||
Operating Temperature |
5 °C to 45 °C | ||
Heating Time | 25 °C to 200 °C: 40 minutes | 25 °C to 100 °C: 30 minutes | 25 °C to 100 °C: 35 minutes |
Cooling Time | 200 °C to 100 °C: 35 minutes | 25 °C to 0 °C: 30 minutes | 25 °C to –25 °C: 45 minutes |
Well Size | 64 mm dia. x 140 mm deep (2.5 x 5.5 in) (working area is 48 mm [1.9 in] in diameter) | ||
Size (WxHxD) | 14 x 26 x 20 cm (5.5 x 10.38 x 8 in) |
18 x 31 x 24 cm (7.2 x 12 x 9.5 in) |
23 x 34 x 26 cm (9 x 13.2 x 10.5 in) |
Weight | 4.5 kg (10 lb) with fluid | 6.8 kg (15 lb) with fluid | 9.8 kg (22 lb) with fluid |
Volume | 0.75 L (1.6 pints) | 0.75 L (1.6 pints) | 1.0 L (2.11 pints) |
Power | 115 V ac (± 10 %), 2.3 A or 230 V ac (± 10 %), 1.1 A, switchable, 50/60 Hz, 270 W |
115 V ac (± 10 %), 1.8 A or 230 V ac (± 10 %), 0.9 A, switchable, 50/60 Hz, 200 W |
94–234 V ac (± 10 %), 50/60 Hz, 400 W |
Computer Interface |
RS-232 included with free Interface-it software | ||
NIST-Traceable Calibration |
Data at 50 °C, 100 °C, 150 °C, and 200 °C |
Data at –5 °C, 25 °C, 55 °C, 90 °C, and 121 °C |
Data at –25 °C, 0 °C, 25 °C, 50 °C, 75 °C, 100 °C, and 125 °C |
Product Highlights
- Temperature sensor calibration
- Stability to ± 0.015 °C
- Ranges from –30 °C to 200 °C
- Accepts oddly shaped sensors
- Exceptional bath portability
- Direct interface to Fluke 754
Each Unit Includes
- Stir bar
- Power cord
- RS-232 interface
- Instrument control software
- NIST-traceable calibration
