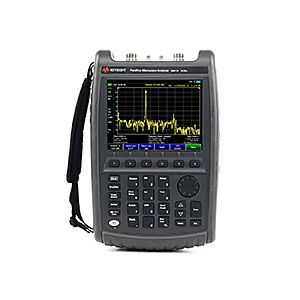

Keysight N9917A-233 Spectrum Analyzer Option for the N9917A

Product Highlights

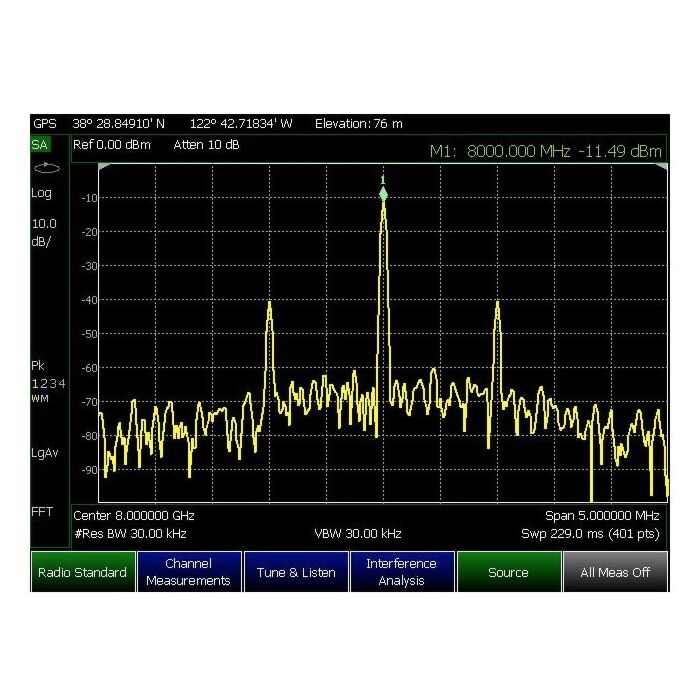

Option 233 adds a high performance, full-band spectrum analyzer including four traces, different detector types, radio standard selection and flexible limit lines. The option offers channel power measurements, AM/FM tune and listen, field strength measurements, antenna factors and frequency counter markers. Record and playback of spectrum traces feature requires Option 236 “Interference Analyzer and Spectrogram”. Tracking generator mode available (requires Option 210).

• 5 kHz to 18 GHz
• ± 0.6 dB amplitude accuracy, full band, over full temperature range of -10 to +55 ° C (14 to 131 °F)
• Spur-free dynamic range ≥ 105 dB
• Phase noise ≤ -111 dBc/Hz @ 10 kHz offset
• Independent CW source included
