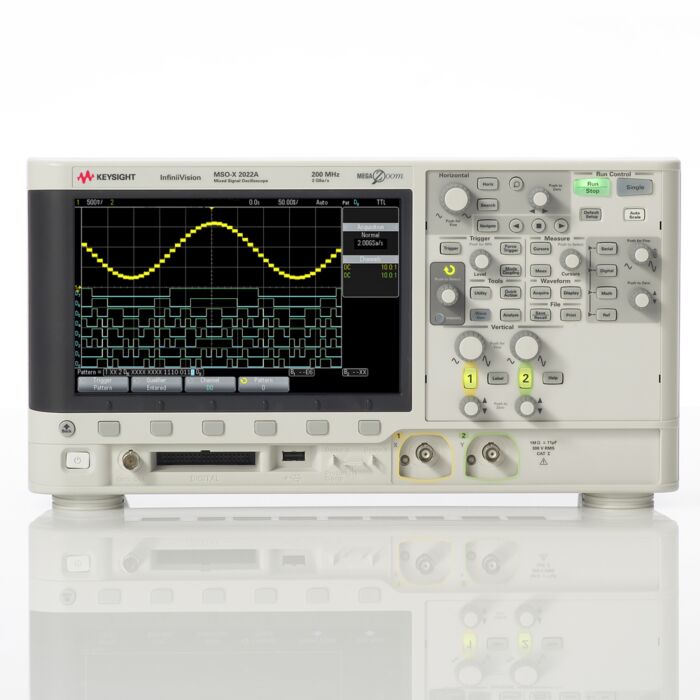

Keysight MSOX2022A Oscilloscope, MixedSignal, 200MHz, 2+8 Channel
Oscilloscope,MixedSignal, 200MHz, 2+8 Channel

Order #: MSOX2022A

Mfg #: MSOX2022A

Questions about availability or need help? Contact Us:

(800) 633-0561
$4,507.00

Keysight MSOX2022A Oscilloscope, MixedSignal, 200MHz, 2+8 Channel

Oscilloscope,MixedSignal, 200MHz, 2+8 Channel

Order #: MSOX2022A

Mfg #: MSOX2022A

$4,507.00
Availability: Ships in 4-6 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States and Canada only.

Product Highlights

  • Faster update rate: Improving update rate from 50,000 to 200,000 wfm/s
  • More memory: 10x more memory depth and standard segmented memory (DSOX2MEMUP+DSOX2SGM, $500+ value)
  • Additional trigger conditions: Adding all advanced hardware triggers from 3000 X- Series, including: Edge then Edge, Runt, Setup and Hold, Rise/Fall Time, Nth Edge Burst and Or triggers
  • Advanced math functions: Adding all advanced math functions from 3000 X- Series, including: Ax + B, Square, Absolute Value, Log, Log(e), Exponential, Exp(10), LPF, HPF, Magnify, Measurement Trend, Logic Bus Chart
  • Bandwidth: 200 MHz
  • Channels: 2 analog channels +8 digital channels
  • High resolution 8.5-inch display
  • Up to 50,000 wfms/s update rate
  • Fast, responsive MegaZoom IV deep memory, 100 kpts
  • Best–in-class oscilloscope
  • Integrated 8-channel mixed signal oscilloscope (MSO)
  • Industry-exclusive WaveGen built-in function generator (optional)
  • Upgradable bandwidth
  • Upgradable WaveGen built-in function generator
  • Upgradable measurement applications
  • Sample rate Up to 2 GSa/s
  • Memory 100 kpts
  • Display 8.5-inch WVGA (800 x 480)
  • Update rate 50,000 wfms/s
  • Upgradable Bandwidth, MSO, measurement applications and WaveGen
  • Warranty Standard 3-year
  • Connectivity USB host (one front, one back), USB device, LAN (optional), GPIB (optional)
  • 2-year calibration cycle

Each Unit Includes

  • Standard 5-year warranty (90 days for unserialized accessories)
  • Standard secure erase
  • One N2863B 300 MHz, 10:1 passive probe per channel
  • N2755-60001 8-channel logic probe and accessory kit
  • Built-in help language support for English, Japanese, simplified Chinese, traditional Chinese, Korean, German, French, Spanish, Russian, Portuguese and Italian
  • Certificate of Calibration
  • Documentation CD
  • Interface language support GUI menus: English, Japanese, simplified Chinese, traditional Chinese, Korean, German, French, Spanish, Russian, Portuguese, Thai, Polish and Italian
  • Localized power cord
  • Includes BV0004B Oscilloscope app
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Keysight Technologies 10070D Passive Probe,20MHz,1:1
    Keysight 10070D Passive Probe, 20MHz, 1:1
    Passive Probe,20MHz,1:1

    Order #: 10070D

    Mfg #: 10070D

    Availability: Ships in 4-6 weeks
    $323.00
  2. Keysight Technologies N2783B Current Probe 30A AC/DC,100MHz
    Keysight N2783B Current Probe 30A AC/DC, 100MHz
    Current Probe 30A AC/DC,100MHz

    Order #: N2783B

    Mfg #: N2783B

    Availability: Ships in 4-6 weeks
    $5,125.00
Bandwidth 200 MHz
Bandwidth Upgrades n/a
Channels 2 + 8
Max Memory Depth 1 Mpts
Max Sample Rate 2 GSa/s
Display Size 8.5 inch
ADC Bits 8 bits
Built-In Instruments (Optional)
  • 20 MHz Func Gen
  • 5-digit Counter
  • 3-digit DVM
Protocol Trigger & Decodes Optional
Operating System Embedded
