Megger BITE5-ADV Advanced Battery Tester

Order # BITE5-ADV | Mfg # BITE5-ADV
$6,850.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Canada only.

Overview

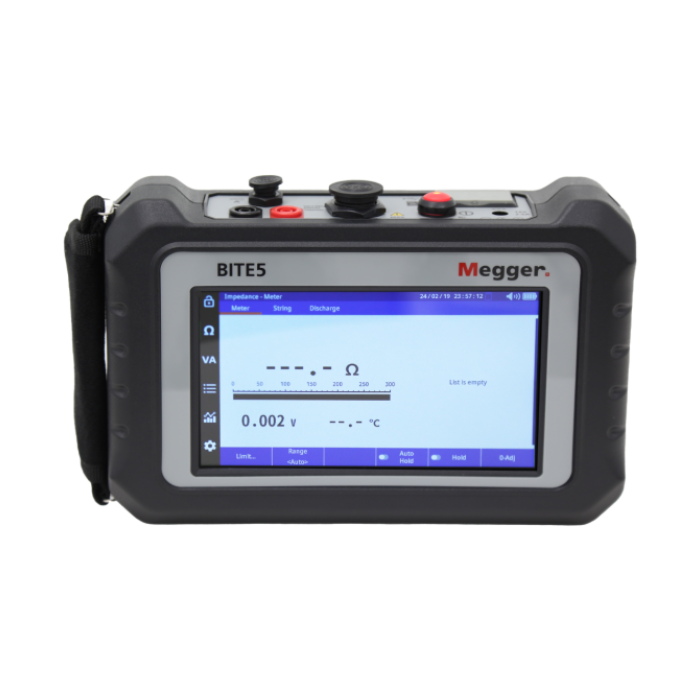

The BITE5 battery tester enables you to perform a simple, quick test, for evaluating the state of health (SOH) of lead-acid (VLA and VRLA), NiCD, and lithium-ion batteries. Featuring an easy-to-use touch screen interface, the BITE5 supports both impedance testing and, when used in conjunction with a load bank, discharge testing. Tests can be performed on individual cells or on strings, up to a maximum cell voltage of 200 V.

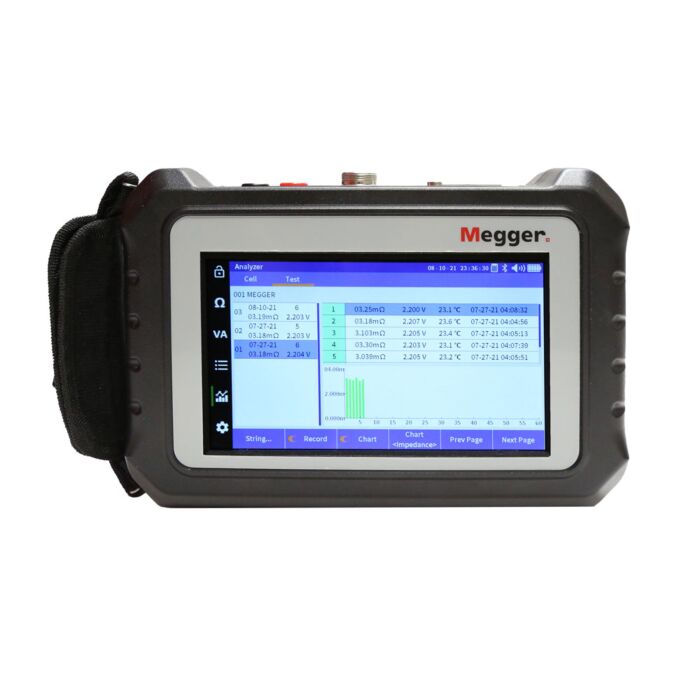

Measurement options provided by the BITE5 battery tester include cell impedance, cell voltage, ripple voltage, AC ripple current and DC float current. For impedance tests, users can set pass, warning, and fail limits for impedance and voltage. For discharge tests, measurements are recorded throughout the full discharge period. Trends can be displayed on the instrument’s integrated touch screen and the stored results can be downloaded via a USB cable or via an SD card for detailed analysis and archiving. Wireless transfer of data to Megger’s PowerDB measurement software suite is also supported.

Among the additional features provided by the BITE5 battery tester are provision for measuring DC voltages up to 1000 V and AC voltages up to 600 V. This means that it is ideal for making measurements on solar combiner boxes, and for checking the input and output voltages of inverters used in renewable power systems.

Technical Resources

Specifications

Data storage and communication SD card
Data storage and communication USB
Power source Battery

Megger BITE5-ADV Advanced Battery Tester Accessories

checkbox-empty
Select
Megger 90037-529 Necklace extension cord
checkbox-empty
Select
Megger 90037-555 Duplex probes (with Kelvin temperature probe)
checkbox-empty
Select
Megger 90037-569 USB Cable
checkbox-empty
Select
Megger 90037-570 Touch Stylus pen
checkbox-empty
Select
Megger 90037-571 Micro SD Card USB reader
checkbox-empty
Select
Megger 90037-572 16G Micro SD Card
checkbox-empty
Select
Megger 90037-573 Carry Bag
checkbox-empty
Select
Megger 90037-574 Pouch Bag
checkbox-empty
Select
Megger 90037-575 Zero Bar
checkbox-empty
Select
Megger 90037-576 Test Lead Assembly
checkbox-empty
Select
Megger 90037-560 Kelvin Probe, 11.75mm probe depth (1/2" Concentric Tip)
checkbox-empty
Select
Megger 90037-563 Concentric Tip Subassembly, 11.75mm probe depth (Black)
checkbox-empty
Select
Megger 1015-611 BITE 5 Backpack
