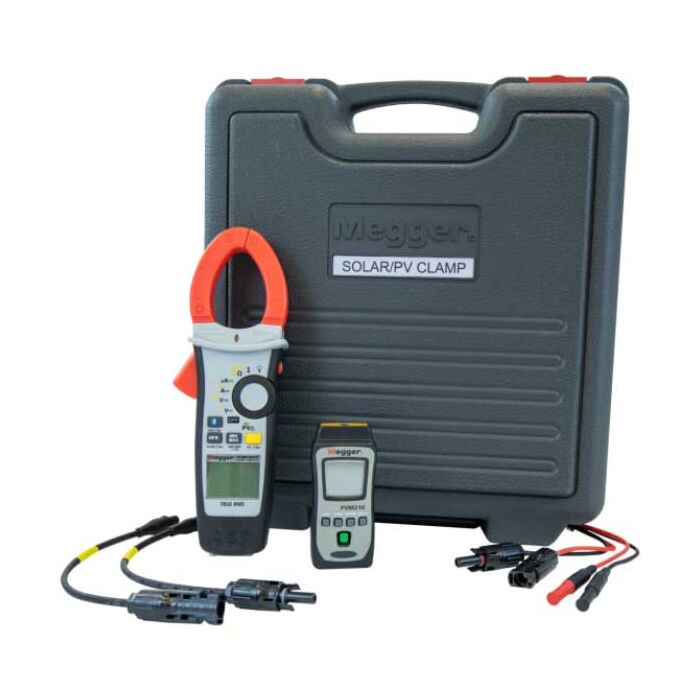

Megger PVK350 Photovoltaic Kit Including: Irradiance Meter, Clamp, DMM, Test Leads

Product Highlights

When installing, commissioning and testing a photovoltaic installation, additional instrumentation is required to accompany the usual electrician's test equipment.

The PVK350 photovoltaic kit offers the additionalequipment in the form of the DCM1500S AC/DC solar clamp meter, PVM210 irradiance meter and a range of specialist PV test leads, supplied in a single protective hard carry case.

DCM1500S Solar PV Clamp Meter

• 2000 V DC
• TRMS 1500 V AC
• 1500 A AC/DC Smart Hold
• Auto ranging
• MIN/MAX Hold
• Inrush Current

PVM210 Irradiance Meter

• The Megger PVM210 provides the solar / photovoltaic engineer a compact, pocket size instrument that is easy to use.
• Optimal incident angle and positioning of solar panels
• Measurement of solar power for panel short circuit calculation
• 3.75 digit LCD display with 1999 W/m² range
• Single handed use
• Mini pocket size
• Standard camera mount fixing for accurate placement

AVO410 True RMS Multimeter

• 6000 count backlit digital display
• True RMS reading on a.c. mode
• 1000 V d.c. / 750 V a.c. ranges
• 10 A a.c. / d.c. ranges
• Resistance, frequency and capacitance ranges
• CAT IV 600 V safety rating

PV Test leads

The PVK350 kit includes the PVHV1 (4 mm connection) and PVHV2 (PV) lead sets for high voltage tests. Additionally, a standard 4 mm to PV connector lead set is provided together with a PV connector adaptor lead set.

Each Unit Includes

• DCM1500S clamp meter
• PVM210 irradiance meter
• AVO410 CATIV TRMS multimeter
• DCM 4 mm lead det (inc. probes and clips)
• PVHV1 leads (4 mm plugs)
• PVHV2 leads (PV plugs)
• PV test leads (2 sets)
• TP100 Thermocouple probe
• Batteries
• Hard carry case
