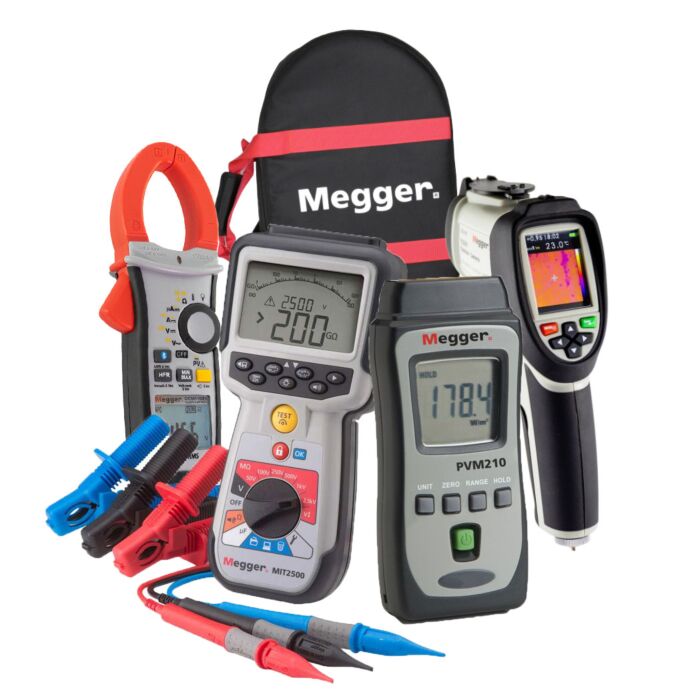

Megger Solar PV Kit with IR Gun, Clamp Meter, Backpack, Irradiance Meter and Insulation Tester
Solar PV Kit
Order #: TRANSCAT SOLAR PV KIT
Mfg #: SOLAR PV KIT
$3,815.00
Megger Solar PV Kit with IR Gun, Clamp Meter, Backpack, Irradiance Meter and Insulation Tester
Solar PV Kit
Order #: TRANSCAT SOLAR PV KIT
Mfg #: SOLAR PV KIT
![Megger Solar PV Kit with IR Gun, Clamp Meter, Backpack, Irradiance Meter and Insulation Tester](https://www.transcat.com/static/version1724161005/frontend/Transcat/default/en_US/Magento_Catalog/images/product/placeholder/brand_logo.jpg)
![Megger Solar PV Kit with IR Gun, Clamp Meter, Backpack, Irradiance Meter and Insulation Tester](https://www.transcat.com/static/version1724161005/frontend/Transcat/default/en_US/Magento_Catalog/images/product/placeholder/brand_logo.jpg)
$3,815.00
Exclusive to Transcat: Megger Solar PV Kit with IR Gun, Clamp Meter, Backpack, Irradiance Meter and Insulation Tester!
Availability: Call for Availability
Product Highlights
MIT2500 Insulation Tester
- Designed for Motor and Cable Testing, Specialist Applications and Electrical Testing Markets
- Insulation Testing to 2.50 Kv (New)
- 200 GΩ Measurement Range at ≥ 1.00kv
- Guard Terminal for Testing of Equipment With High Surface Leakage Issues
- Stabilized Insulation Test Voltage to -0% +2% +/-2V
- Variable Insulation Test Voltage from 50V to 999 V in 1V Steps
- Variable Insulation Test Voltage from 1.00 Kv to 2.50kv in 10V Steps
- Single Range, Fast Continuity Testing from 0.01Ω to 1MΩ
- 0.01mv to 600V TRMS AC and DC Voltage Measurement
- Test Result Storage and Bluetooth Downloading
- Live Circuit Detection and Protection
- CATIV 600V Applications & IP54 Environmental Protection
- Rechargeable Options for Mains and Car Charging
DCM1500S Solar PV Clamp Meter
- 2000 V DC
- TRMS 1500 V AC
- 1500 A AC/DC Smart Hold
- Auto ranging
- MIN/MAX Hold
- Inrush Current
PVM210 Irradiance Meter
- The Megger PVM210 provides the solar / photovoltaic engineer a compact, pocket size instrument that is easy to use.
- Optimal incident angle and positioning of solar panels
- Measurement of solar power for panel short circuit calculation
- 3¾ digit LCD display with 1999 W/m² range
- Single handed use
- Mini pocket size
- Standard camera mount fixing for accurate placement
TC3231 Thermal Camera
- 2.2 inch (55.88 mm) 320 x 240 TFT LCD display
- 32 x 31 pixel resolution IR temperature measurement
- Measurement range -20 ° to 300 °C / -4 °F to 572 °F
- Adjustable emissivity
- Micro SD memory for storing up to 6000 images
- High and low alarm (enable and disable)
- Selectable color palette
- Image blending with selectable distance of 0.5 m, 1 m, 2 m, or 3 m
